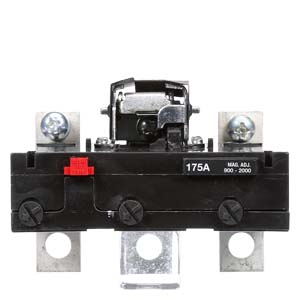

Product image for Siemens FD63T175 FD MCCB,22kA@60
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

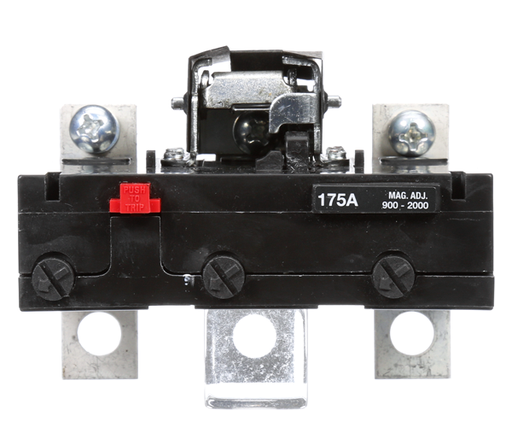

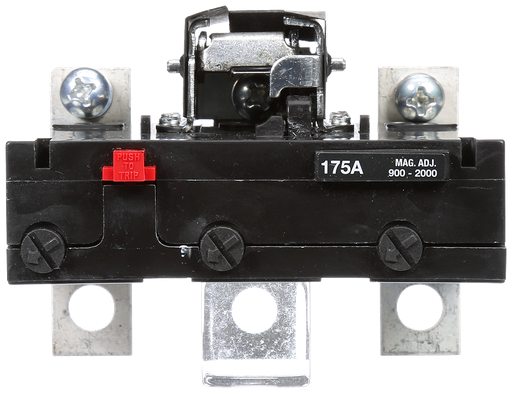

Siemens FD63T175 FD MCCB,22kA@60

Manufacturer: Siemens | Catalog # FD63T175 | North Coast Part # 668918
$1,485.22/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 175A, Interchangeable, 40.C Trip Unit Only, Thermal Magnetic, Standard IC Rating

Technical Information

Actuator
Varying
Amperage
175 Amp
Applications
40C Trip Unit Only
Current
175 Amp
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR,UL
TC Connection
N/A
Trip Range
900-2000
Trip Type
Thermal-Magnetic
Type
FD6, Thermal Magnetic
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643211964
GTiN
00783643211964
Product UPC
78364321196
Used With
3-Pole 22 kA 600 VAC/500 VDC Circuit Breakers
Weight
1.175 lb

Dimensions

Height
5-1/4 Inch
Length
5 Inch
Width
5.000 in

Certifications and Compliance

Country of Origin
Mexico
