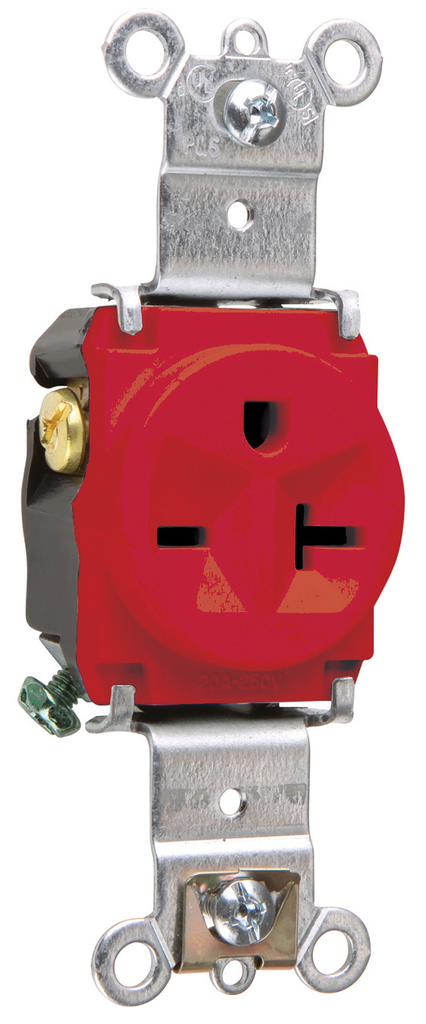

Pass & Seymour 5871-RED 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20R Red Nylon Face Thermoplastic Back Body Single Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # 5871RED | North Coast Part # 669225
$28.80/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch
Specification Sheet
Heavy-Duty Spec Grade Single Receptacle Back & Side Wire 20amp 250volt Gray

Technical Information

Amperage
20 Amp
Applications
For Commercial
Blade Dimensions
1.32 in L x 1.093 in W x 3.68 in H
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall, Flush, Screw
NEMA
6-20R
Number of Poles
2 Pole
Number of Wires
3
Size
1.32 L x 1.093 W x 3.68 H In
TC Connection
Back and side wire
Type
Heavy Duty
Voltage
250 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Red
GTiN
00785007587142
Product UPC
78500758714
UNSPSC
39121406

Dimensions

Depth
1.093 Inch
Height
3.28 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Impact-resistant nylon face and thermoplastic back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
