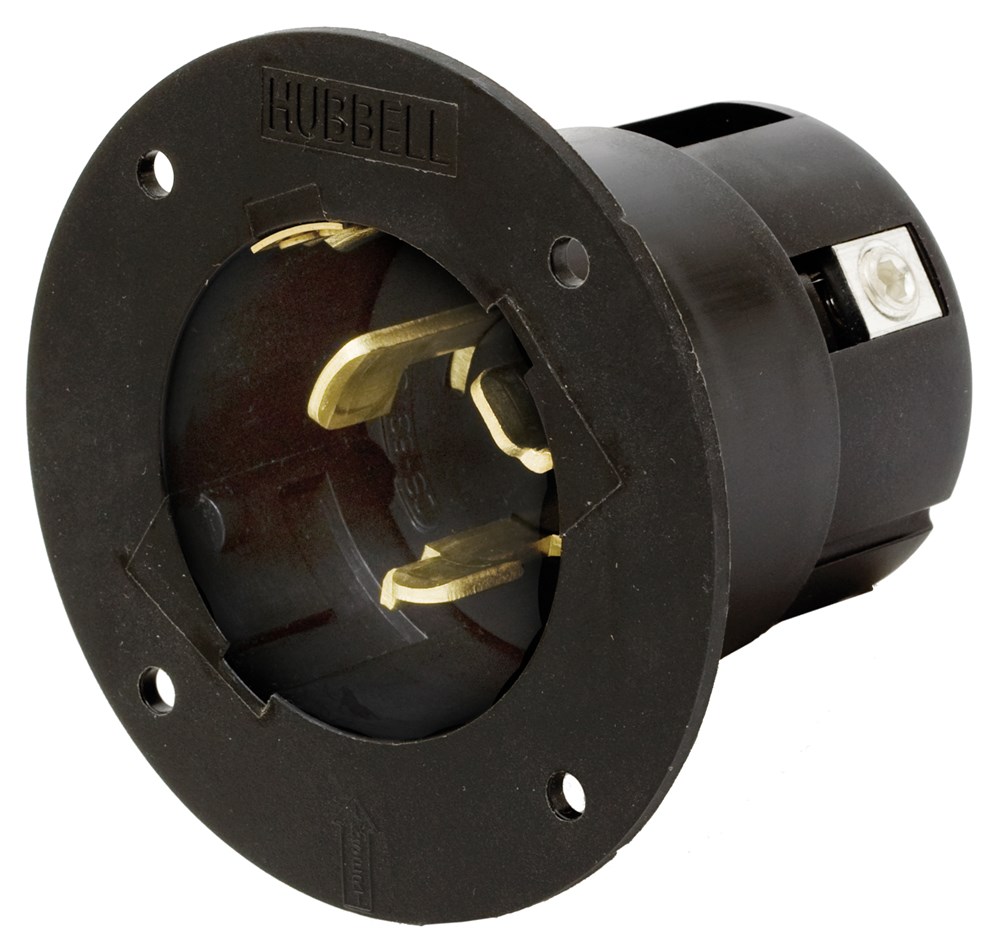

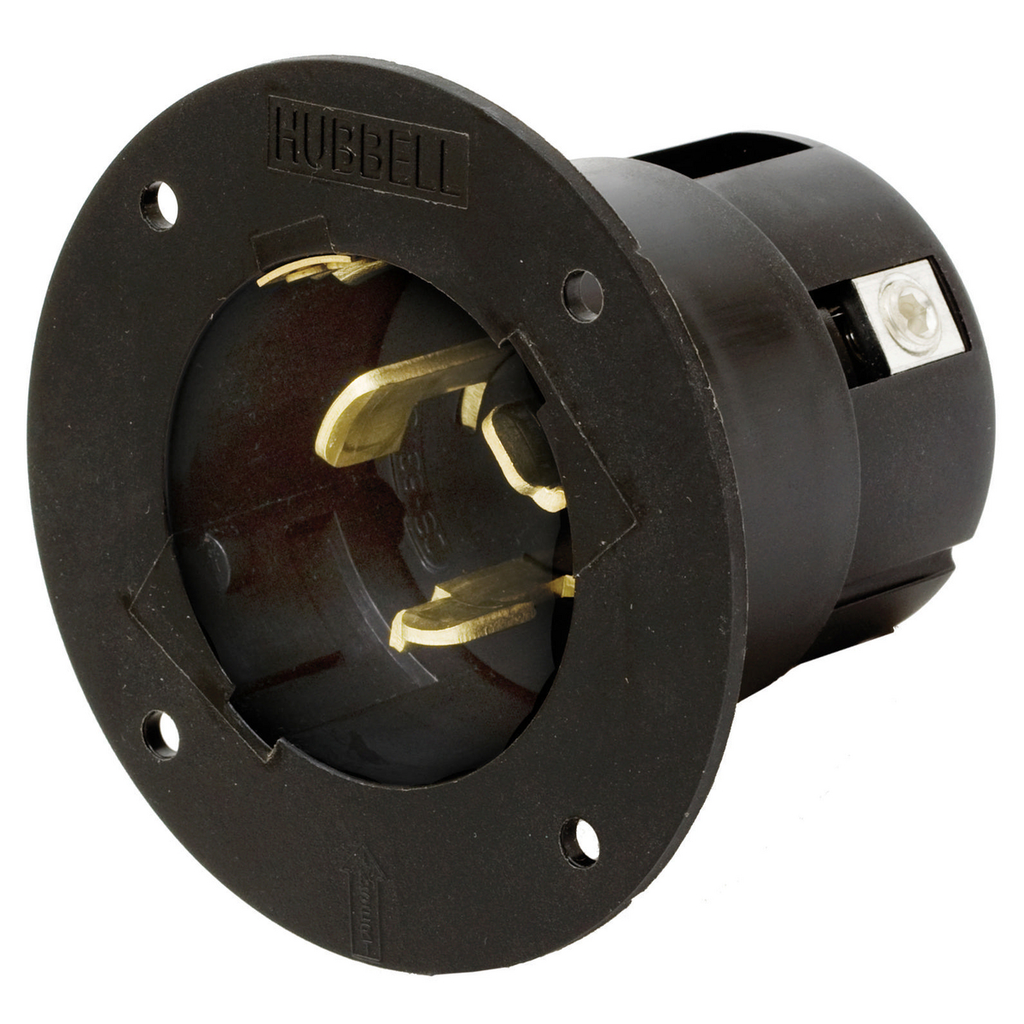

Product image for Hubbell CS6375L Locking INLT, 50A 125/250V, 3P4W, LC
Image thumbnail 0
Image thumbnail 1
Email

Hubbell CS6375L Locking INLT, 50A 125/250V, 3P4W, LC

Manufacturer: Hubbell / Kellems | Catalog # CS6375L | North Coast Part # 670692
$261.84/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Locking Devices, Economy, Flanged Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black

Technical Information

Amperage
50 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
18-8 AWG
Current
50 Amp
Dielectric Strength
Withstands 2,000V AC Minimum
Material
Composite
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
4,4
Size
Standard Sized Product
Style
Heavy Duty
TC Connection
Terminal Screws
Temperature Rating
-40 Degrees C to 75 Degrees C
Type
Locking Inlet
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Bryant

General Product Info

12-Digit UPC
783585320717
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585320717
Product Series
Replacement Part
Product UPC
78358532071

Dimensions

Height
3.3 Inch
Length
2.7 Inch
Width
3.7 in

Certifications and Compliance

Country of Origin
China
Features
  • Metallic flanged casing provides maximum strength and protection
  • Thermoset interior provides superior heat resistance
  • Metallic Flange
