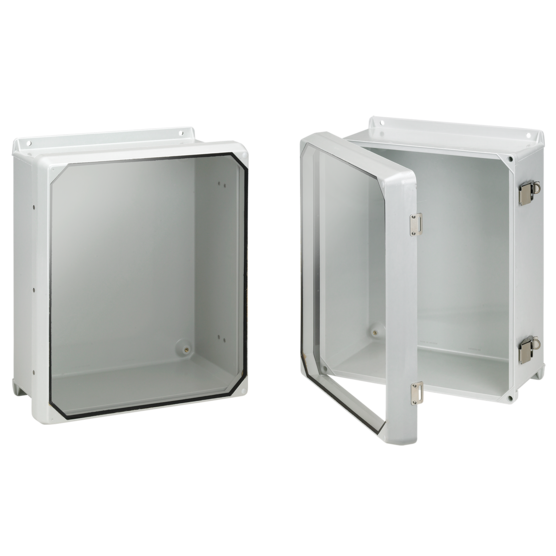

Product image for Hoffman CHJ1008HWPL1LG Flat Clear Cover with Latches, Type 4X, 9.71x 7.21x 4.3, Fiberglass
Email

Hoffman CHJ1008HWPL1LG Flat Clear Cover with Latches, Type 4X, 9.71x 7.21x 4.3, Fiberglass

Manufacturer: nVent Hoffman | Catalog # CHJ1008HWPL1LG | North Coast Part # 670730
$424.24/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Enclosures feature a flat, overlapping clear cover design that ensures a more-secure seal and provides a larger viewing area than a traditional window. Latches provide easy access and security.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Color Coding
RAL 7035
IP Rating
66
Material
Fiberglass
Number of Latches
1
Size
11.31x9.31x5.43 in
Standard
CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,Enclosure Flammability Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
HJ H Series

General Product Info

12-Digit UPC
783510159047
Color
Light Gray
Finish
Matte
GTiN
00783510159047
Product UPC
78351015904
Weight
5.1 lb

Dimensions

Depth
4.3 Inch
Height
6.4 Inch
Length
11.9 Inch
Thickness
3.6 mm
Width
7.21 in
Features
  • Compression-molded fiberglass construction
  • Clear polycarbonate viewing area
  • Cover fastens with padlockable Type 316 stainless steel latches
  • Type 304 stainless steel piano hinges
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact
