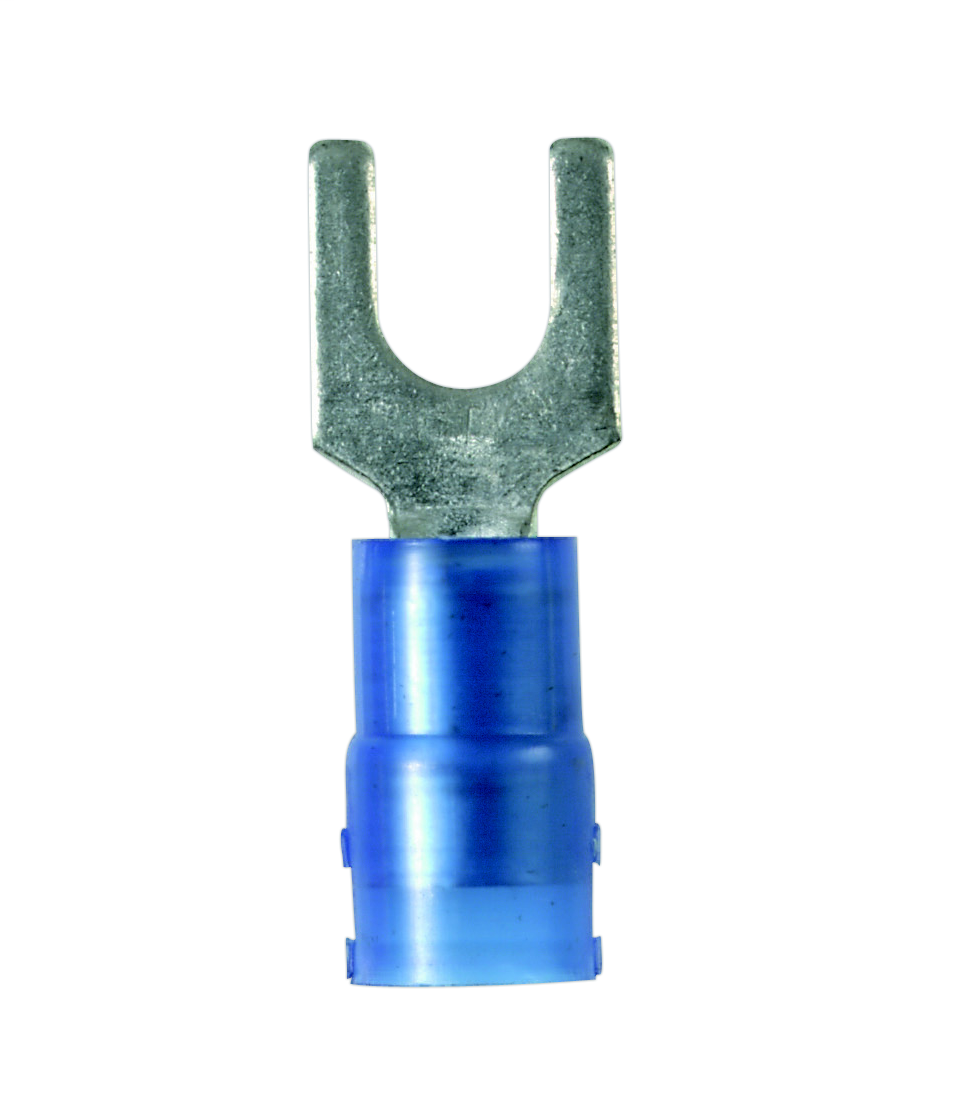

Panduit PN14-14F-M 18-14 AWG Nylon Insulated Fork Terminal

Manufacturer: Panduit | Catalog # PN14-14F-M | North Coast Part # 673001

$467.45/m (1000 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Out of stock, call for availability
Fork Terminal, Nylon Insulated, 18 - 14 American Wire Gauge (AWG), 1/4 Inch Stud Size. Fork design provides for fast and easy installation, without the need to remove fastener. Metal insulation grip sleeve crimps to wire insulation. providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B.

Technical Information

Barrel Length
0.51 in
Barrel Type
Grip Sleeve
Color Coding
Blue
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
221 degrees F
Size
M6
TC Connection
Standard
Temperature Rating
221 F
Type
Loose Piece Forks
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Pan-Term

General Product Info

Color
Blue
Finish
Tin-Plated
GTiN
00074983803156
Product UPC
07498380315
UNSPSC
39121409

Dimensions

Overall Length
1.02 in
Width
0.44 in

Certifications and Compliance

Country of Origin
MX
