3M M18BCX M18BCX NON-INSULATED B

Manufacturer: 3M | Catalog # M18BCX | North Coast Part # 673760
$0.48/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
200 available

For Delivery

Order by 4:00pm PT for delivery Monday
Not available for delivery*
Check your local branch
Specification Sheet Product Catalog Page

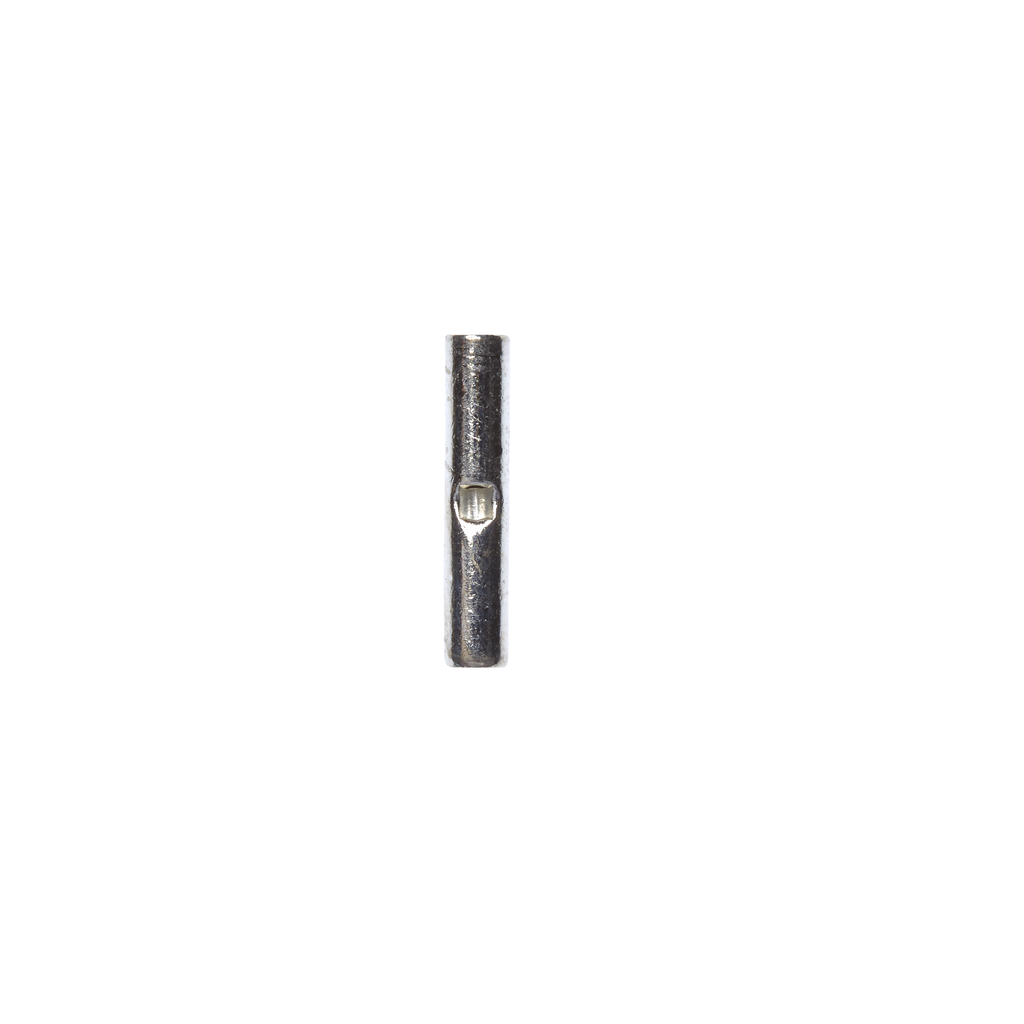

3M™ Scotchlok™ Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a non-insulated, seamless barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.28 in
Barrel Type
Seamless
Conductor Size
22-18 AWG
Connection Type
Butt
Insulation Material
Non-Insulated
Material
Copper
Max Operating Temperature
221 degrees F
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Butt Connectors
Type
Butt

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Color
Metal
GTiN
00051128586495
Product Type
Connector
Product UPC
05112858649

Dimensions

Length
0.63 Inch
Overall Length
0.63 in
Thickness
0.031 in
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Built-in wire stop for correct positioning
  • Non-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Accommodates wire sizes 22 to 18 AWG
