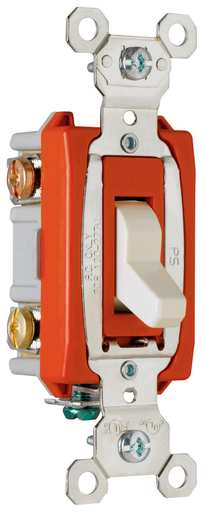

Pass & Seymour PS20AC3-LA 20 Amp 120/277 VAC 3-Way Light Almond Glass Reinforced Nylon Screw Mounting Toggle Switch

Manufacturer: Legrand / Pass & Seymour | Catalog # PS20AC3LA | North Coast Part # 678772

$6.09/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
3way Toggle Switch, Back & Side Wire, 20amp 120/277volt, Red

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
Industrial
Blade Dimensions
3.3 in
Contact Rating
20amp, 120/277vac
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
1 Pole
Size
3.3"
Type
3-Way
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Light Almond
GTiN
00785007195422
Product UPC
78500719542
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.320 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • Federal Spec Listed
  • Shallow design for easier installation.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
  • Heavy-duty bumpers for quiet, smooth operation.
  • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
  • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
  • Cam control and spring actuator for positive ''makes and breaks.''
  • Locking support provides resistance to face and back body separation.
  • Oversized silver-alloy contacts for long life and better heat dissipation.
  • Impact- and chemical-resistant cover.
  • Grounding terminal is standard with screw-pressure plate back wire.
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
