Thomas & Betts 2A20 22 to 20 AWG 0.84 Inch Red Tiined Copper Nylon Insulated Parallel Splice

Manufacturer: Thomas & Betts | Catalog # 2A20 | North Coast Part # 681
$192.14/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

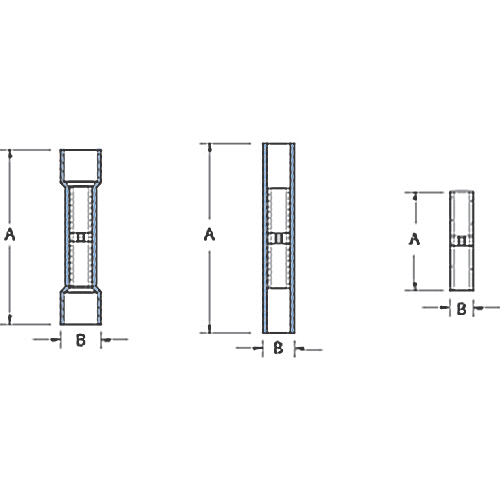

Nylon-Insulated Parallel Splice, Length .84 Inches, Width .20 Inches, Wire Range #22-#20 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
20-22 AWG
Connector Type
Parallel
Insulation Type
Insulated Nylon
Material
Copper, Polyamide
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800028
Color
Red
Finish
Tin Plated
GTiN
05414363140429
Product UPC
78621080002
Features
  • Wires are laid side by side in the connector, and the splice connection is complete in one crimp.
