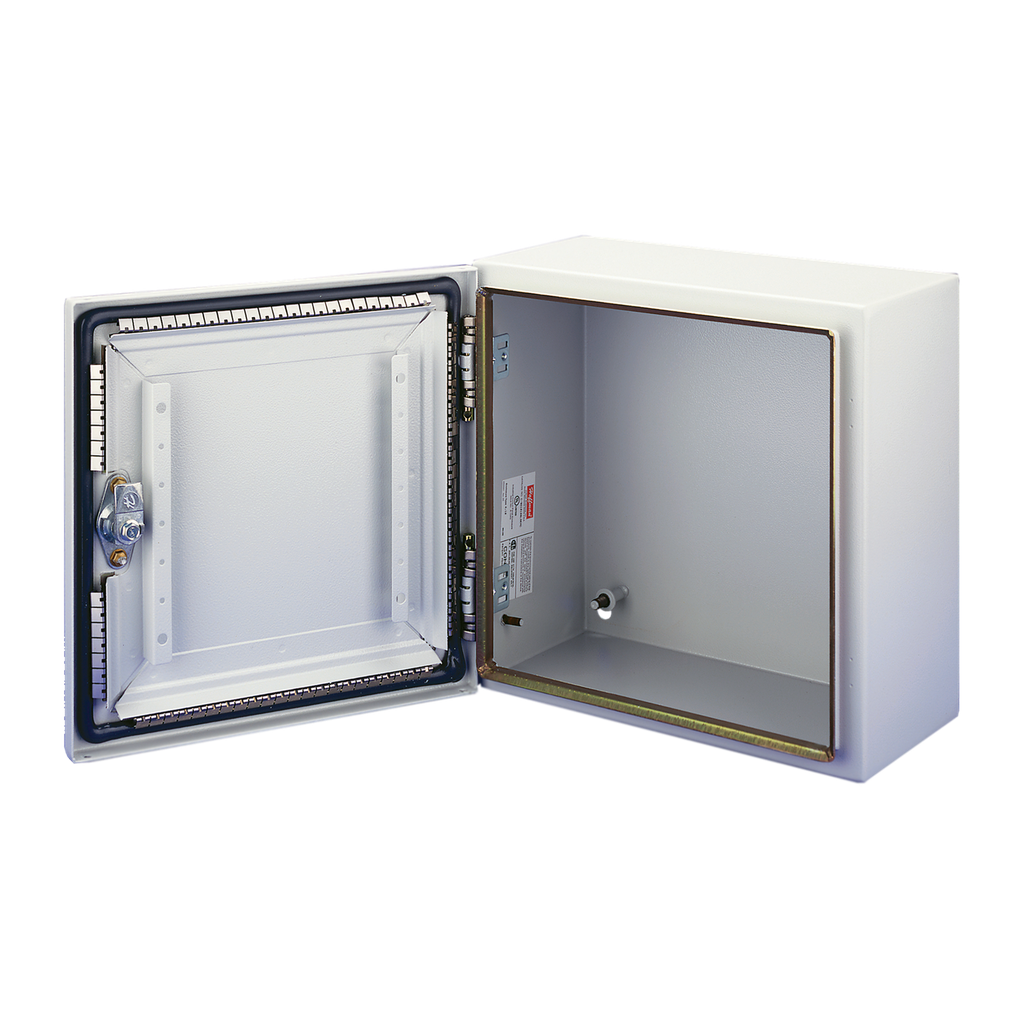

Product image for Hoffman CSD24248LGEMC CONCEPT EMC, Type 4, 24" x 24" x 8", Lt Gray, Steel
Email

Hoffman CSD24248LGEMC CONCEPT EMC, Type 4, 24" x 24" x 8", Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # CSD24248LGEMC | North Coast Part # 681562
$2,593.75/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Use stylish Concept EMC Enclosures with their convenient quarter-turn latches in indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.

Technical Information

Applications
Controls and Drives
Body Gauge
16
Body Thickness
1.52 mm
Color Coding
RAL 7035
Door Gauge
14
Material
Steel
Number of Latches
2
Size
24.00x24.00x8.00 in
Standard
CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Type
Mild Steel Wall Mounted Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510257392
Color
Light Gray
Finish
Powder Coated
GTiN
00783510257392
Product UPC
78351025739
Weight
45 lb

Dimensions

Depth
8 Inch
Height
10-1/4 Inch
Length
29 Inch
Width
24 in
Features
  • Seams continuously welded and ground smooth
  • Minimum width body flange provides maximum door opening
  • External formed body flange channels away liquids
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Door opens 210 degrees
  • Corner-formed door
  • Hinge mounting brackets for wire management or optional accessories
  • Stainless steel spring finger EMI/RFI gasket
  • Quarter-turn latches
  • Grounding stud on body
  • Door bars provided for wire management and bonding
  • Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Illustrated instruction sheet
