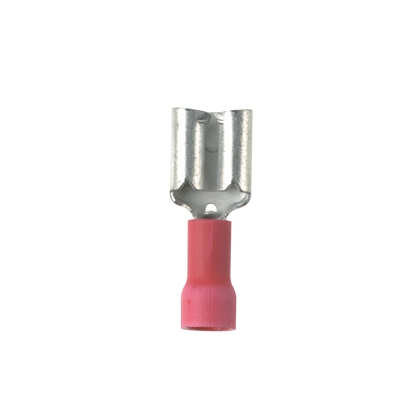

Product image for Panduit DV18-187B-CY Loose Piece Disconnect
Image thumbnail 0
Image thumbnail 1
Email

Panduit DV18-187B-CY Loose Piece Disconnect

Manufacturer: Panduit | Catalog # DV18-187B-CY | North Coast Part # 683598
$175.66/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.75" (19.1 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
22-16 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983685561
Color
Red
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983685561
Product Type
Terminals
Product UPC
07498368556
UNSPSC
39121409

Dimensions

Height
0.1 Inch
Length
3 Inch
Overall Length
0.75 in
Width
0.23 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
