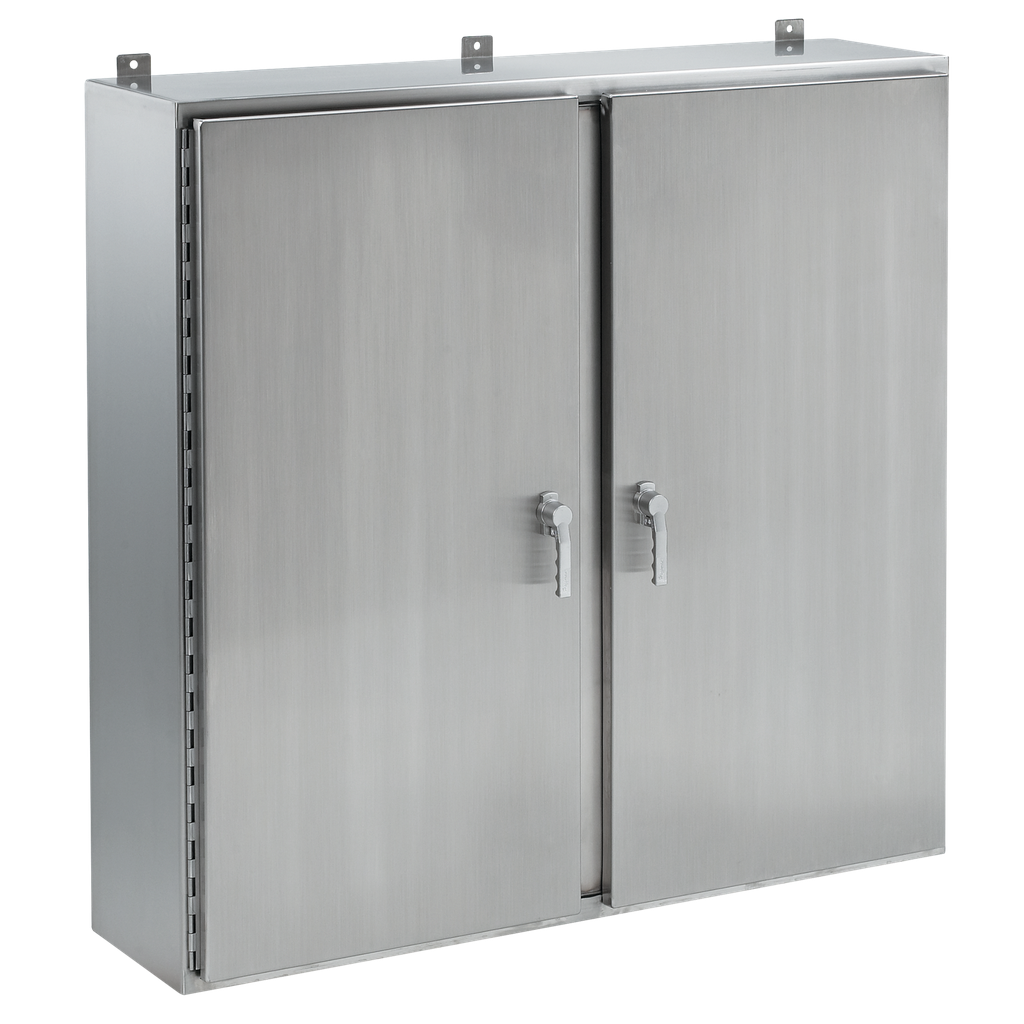

Product image for Hoffman A24H4808WFSSLP3PT Continuous Hinge Two-Door with 3-Point Latch, Type 4X, 24" x 48" x 8", SS Type 304
Email

Hoffman A24H4808WFSSLP3PT Continuous Hinge Two-Door with 3-Point Latch, Type 4X, 24" x 48" x 8", SS Type 304

Manufacturer: nVent Hoffman | Catalog # A24H4808WFSSLP3PT | North Coast Part # 684429
$8,126.61/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These two-door wallmount enclosures provide industry-leading protection for components in corrosive or wet environments. Enclosures have a removable centerpost for easy panel installation, 3-point latching with HOFFMAN's exclusive PowerGlide Handles, and a seamless foam-in-place gasket for sealing protection from contaminants.

Technical Information

Applications
Controls and Drives; Corrosive Environments
IP Rating
66
Material
Stainless Steel
Size
24.00x48.00x8.00 in
Standard
CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File Number E61997,IEC 60529, IP66,NEMA Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Type
Stainless Steel Wall Mounted Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510145217
Color
Unpainted
Finish
Brushed
GTiN
00783510145217
Product UPC
78351014521
Weight
96 lb

Dimensions

Depth
8 Inch
Height
24 Inch
Length
51-1/2 Inch
Thickness
2 mm
Width
27.75 in
Features
  • Seams continuously welded and ground smooth
  • Removable centerpost for easy panel installation
  • Flange trough collar around all sides of enclosure door openings
  • External mounting brackets
  • Heavy-duty 3-point latching mechanism operated by Type 316 stainless steel PowerGlide padlocking handles
  • Easily removable doors by pulling heavy gauge continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Seamless foam-in-place gasket
  • Collar studs provided for mounting optional panels
  • Bonding provisions on doors; grounding studs on body
