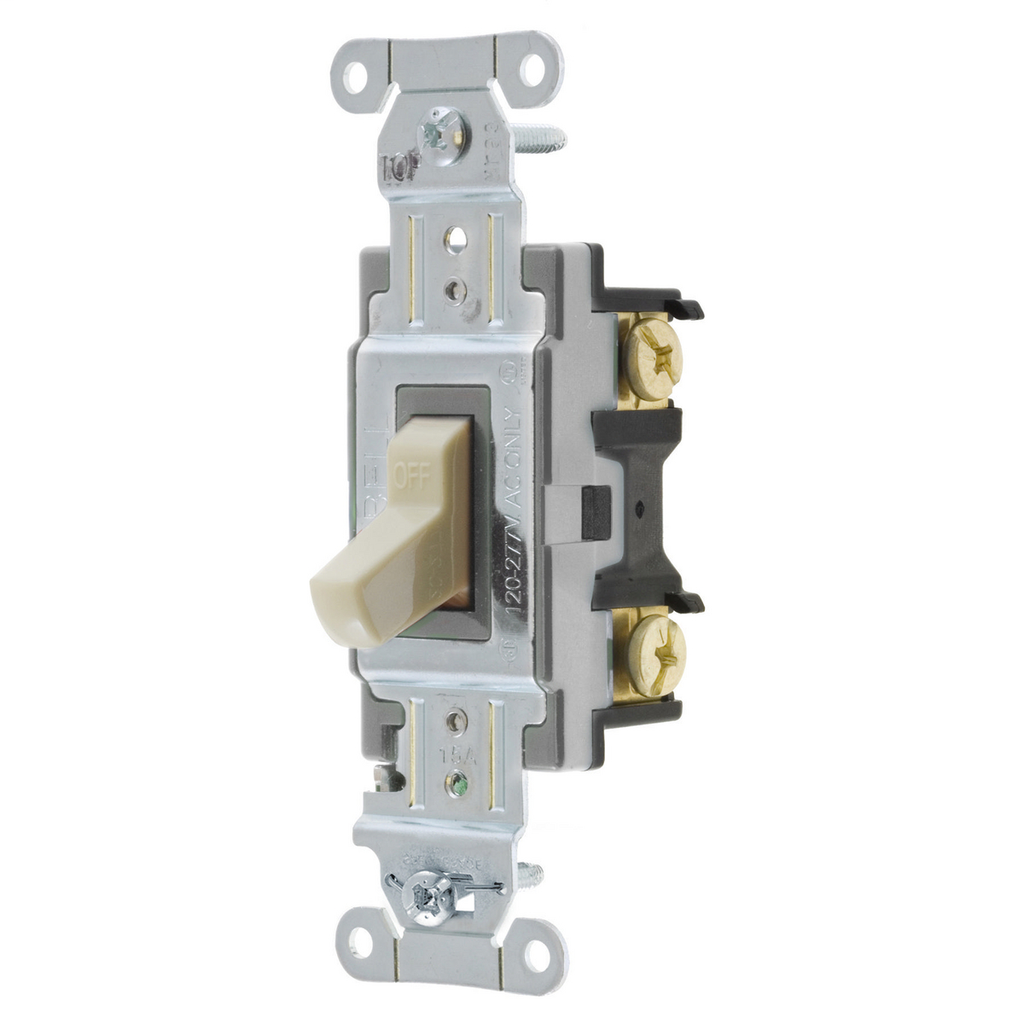

Hubbell Wiring Devices CS115I 15 Amp 120/277 VAC 1-Pole Ivory Toggle Switch

Manufacturer: Hubbell / Kellems | Catalog # CS115I | North Coast Part # 68452

$2.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
20 available

For Delivery

Order by Tuesday 4:00pm PT for delivery Wednesday
Out of stock, call for availability
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, IvoryToggle.

Technical Information

Action
Positive Snap, Off
Actuator
Toggle
Applications
Commercial Spec Grade
Blade Dimensions
31.8 mm W x 28.7 mm D x 60.5 mm H
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 A
Enclosure
None
Grade
Commercial
Material
Nylon
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
Maximum continuous 75C and minimum -40C without Impact
Size
4.18 in x 1.49 in x 1.83 in
Standard
UL
TC Connection
Side Wired Only
Type
General Purpose, 2 Position, Standard
Voltage
120-277 Volt
Wattage
4155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
AC Toggle Switches

General Product Info

Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585901053
Product Series
General Purpose
Product UPC
78358590105
Weight
0.15 lb

Dimensions

Height
1.66 Inch
Length
4.16 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
