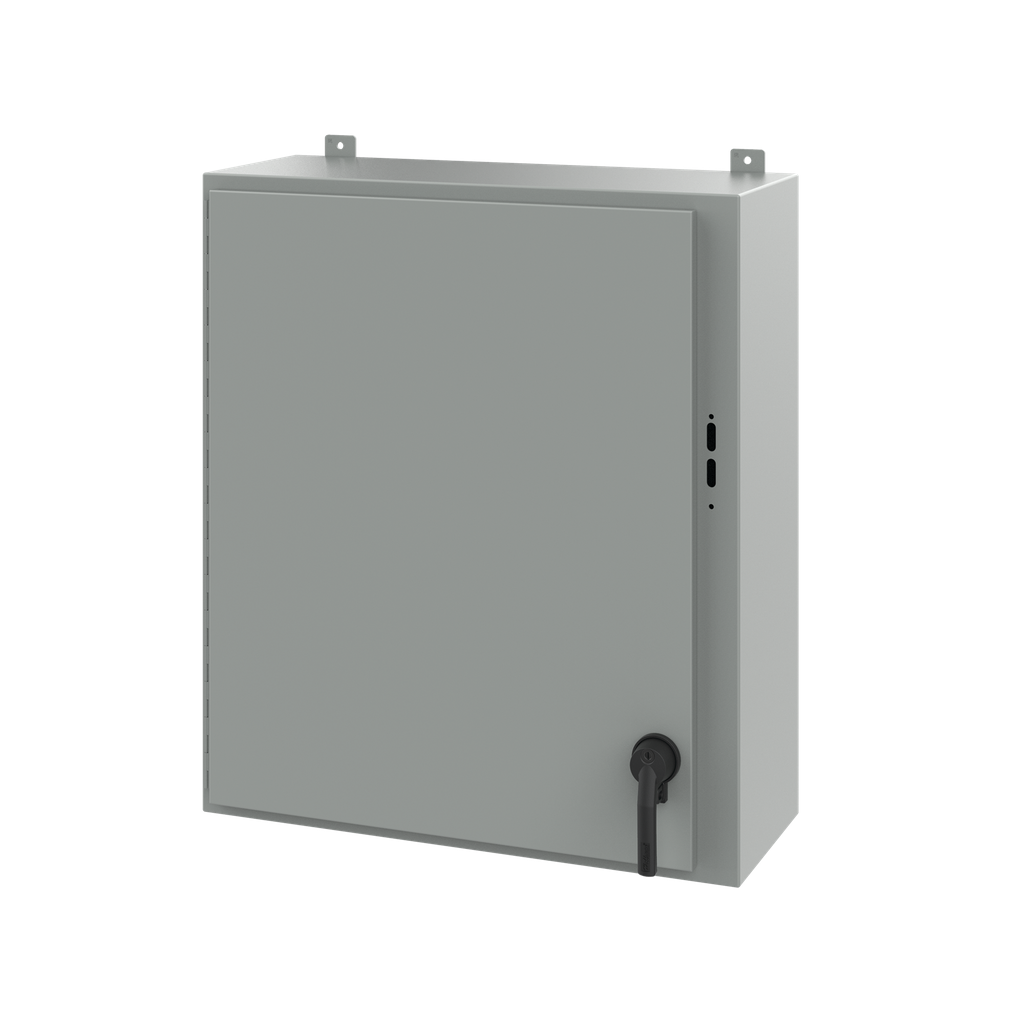

Product image for Hoffman A36SA3212LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 36" x 31.38" x 12", Steel
Email

Hoffman A36SA3212LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 36" x 31.38" x 12", Steel

Manufacturer: nVent Hoffman | Catalog # A36SA3212LPPL | North Coast Part # 68636
$1,671.56/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware.

Technical Information

Applications
Arc Flash Safety, Controls and Drives, Power Distribution, Indoor
IP Rating
65
Material
Steel
Mounting Type
Wall
Size
36.00x31.38x12.00 in
Type
Single Door, Single Lock, Dust-Resistant, Gangable

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510404390
Color
Gray
Finish
Powder Coated
GTiN
00783510404390
Product UPC
78351040439
Weight
150 lb

Dimensions

Depth
305 mm
Height
914 mm
Length
41 Inch
Thickness
1.9 mm
Width
797 mm
Features
  • \"Model numbers ending with \"\"PL\"\" include handle and handle latching hardware\
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
  • Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
  • Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
