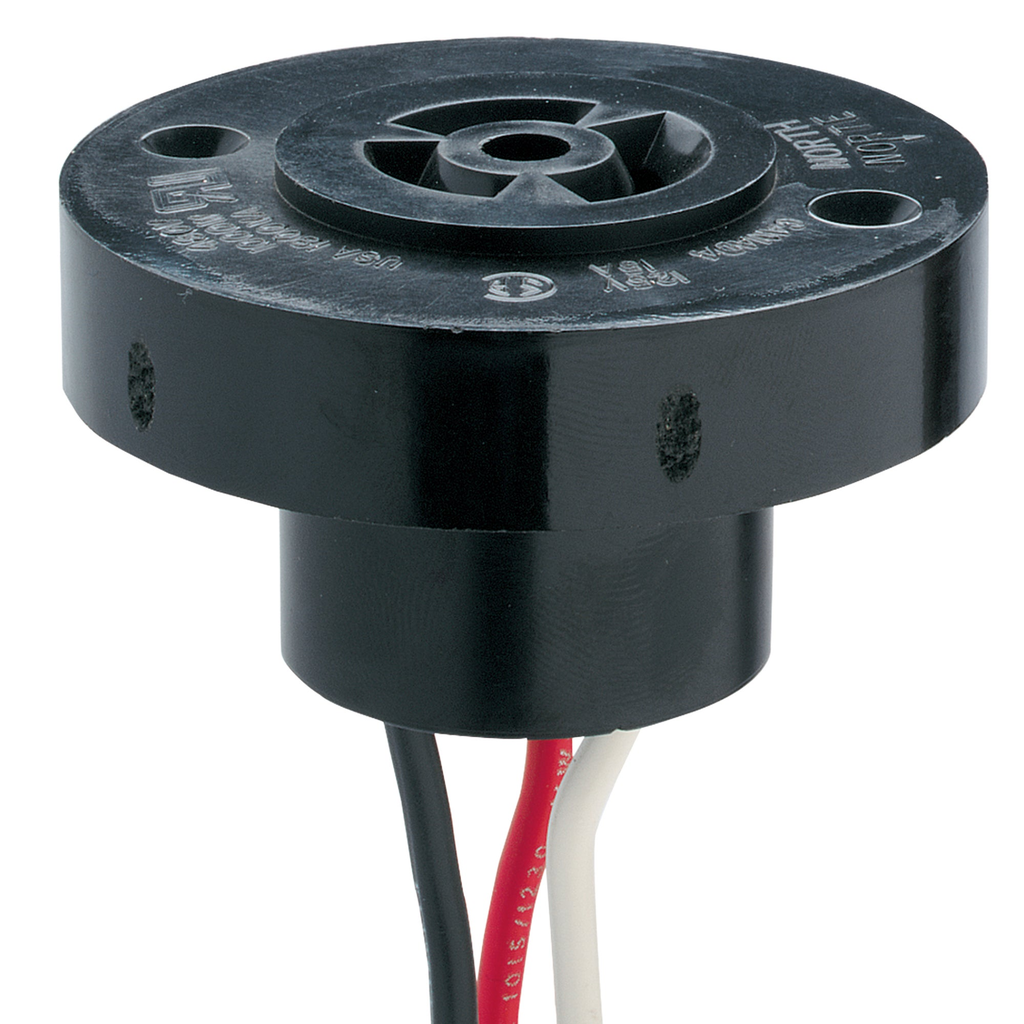

Product image for Intermatic K121-30 RECEPTACLE-TWIST LOCK
Email

Intermatic K121-30 RECEPTACLE-TWIST LOCK

Manufacturer: Intermatic | Catalog # K121-30 | North Coast Part # 689349
$28.49/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The K121 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself (K121), or attached externally with the use of a mounting bracket (K122).

Technical Information

Amperage
15 Amp
Applications
Parking lots, landscape lighting, exterior lighting, pedestrian pathway
Material
Polycarbonate
Max Operating Temperature
176 degrees F
Min Operating Temperature
-40 degrees C
Mounting Configuration
Locking Type
Number of Conductors
3
Sensor Type
Connector interface for locking type photocontrols
Temperature Rating
80.0 degrees C
Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Voltage
480 Volt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275107175
Color
Black
Finish
Plastic
GTiN
00078275107175
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827510717
Used With
Lighting, pathways

Dimensions

Diameter
3 Inch
Height
1.52 Inch
Warranty Length
1 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
China
Features
  • NEMA receptacle with 3-prong sockets
  • Compliant to ANSI C136.10 specifications
  • NA
