HCI HBL4786C LKG FLG-INLT, 15A 277

Manufacturer: Hubbell / Kellems | Catalog # HBL4786C | North Coast Part # 69000

$36.38/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Out of stock, call for availability

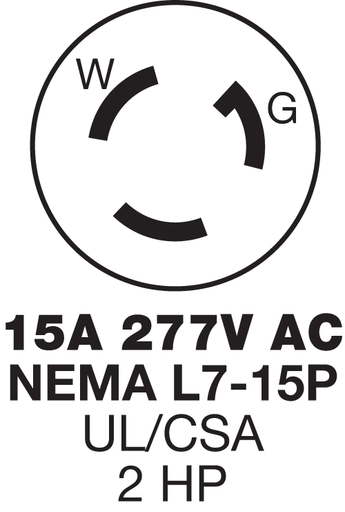

Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Applications
Extra Heavy Duty Industrial
Conductor Size
14 AWG
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw
Number of Poles
2 Pole
Number of Wires
3

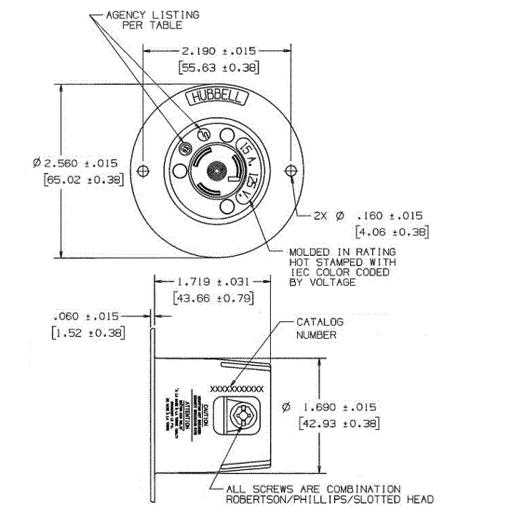

Size
2.56 in x 2.56 in x 1.71 in
Standard
CSA C22.2 No.42,Fed.Spec.W-C-596,UL 498
TC Connection
Screw Terminals
Temperature Rating
Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Type
Locking, Industrial Grade
Voltage
277 Volt
Wattage
4155 Watt
Wire Size
18-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock

General Product Info

Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585172156
Product UPC
78358517215
Weight
0.15 lb

Dimensions

Height
1.71 Inch
Length
2.56 in
Width
2.640 in

Certifications and Compliance

Country of Origin
USA
