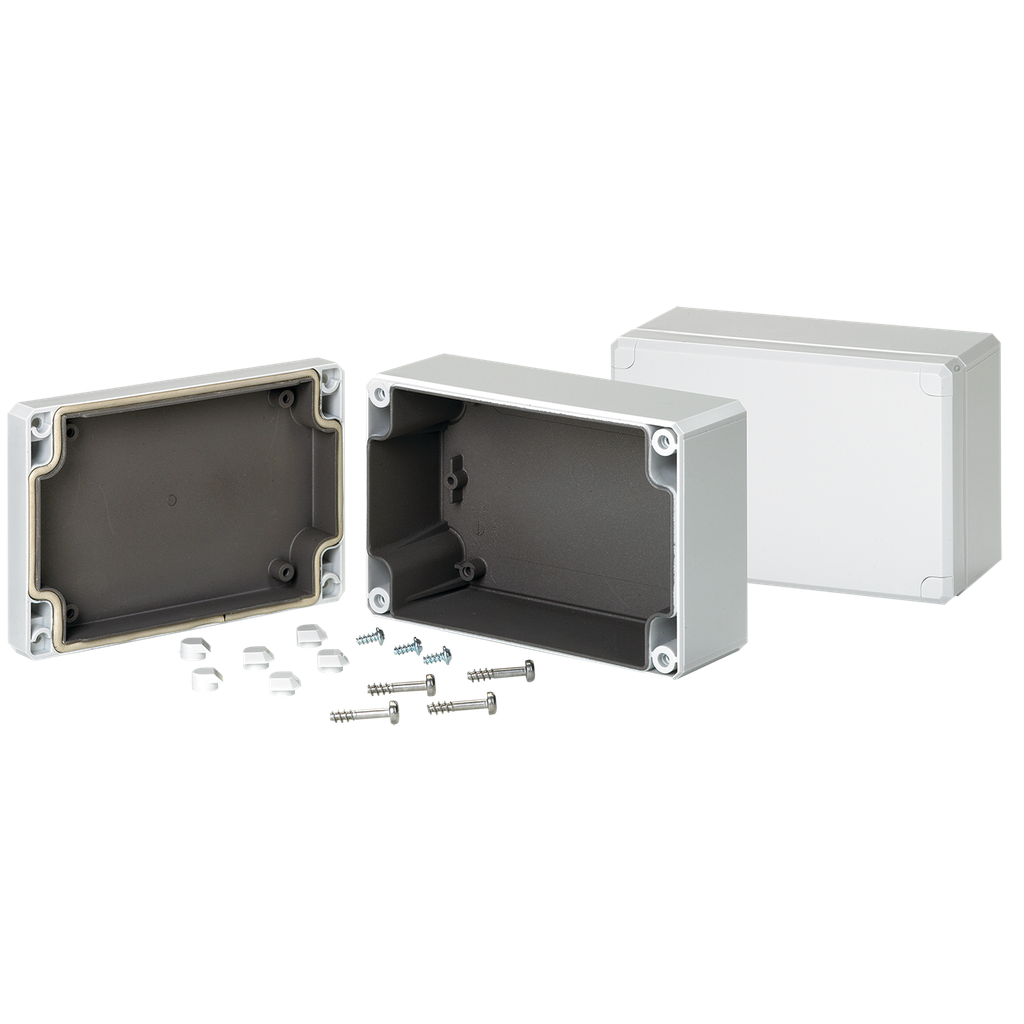

Product image for Hoffman Q16129PCEMC QLINE D, EMC, Type 4X, 160x 120x 90mm, Polycarbonate
Email

Hoffman Q16129PCEMC QLINE D, EMC, Type 4X, 160x 120x 90mm, Polycarbonate

Manufacturer: nVent Hoffman | Catalog # Q16129PCEMC | North Coast Part # 690102
$251.69/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
QLine D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Capacity
88 cu in
Color Coding
RAL 7035
IP Rating
66
Material
Polycarbonate
Size
160 x 120 mm
Standard
CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12, 13,UL 508A Listed; Type 4, 4X, 12, 13
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Qline™

General Product Info

12-Digit UPC
783510465797
Color
Light Gray
Finish
Matte
GTiN
00783510465797
Product UPC
78351046579
Weight
0.8 lb

Dimensions

Depth
3.54 Inch
Height
6.3 Inch
Length
6.3 Inch
Thickness
3 mm
Width
4.72 in
Features
  • Body is impact-resistant polycarbonate
  • EMC conductive coating in base and cover
  • Gasket of silver/silicone
  • Mounting holes molded directly under cover screws
  • Cross-point captivated cover screws are stainless steel
  • Mounting tracks along body side walls and bosses on cover for PC card installation
  • Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails and other components
  • Screws provided for mounting optional panel
