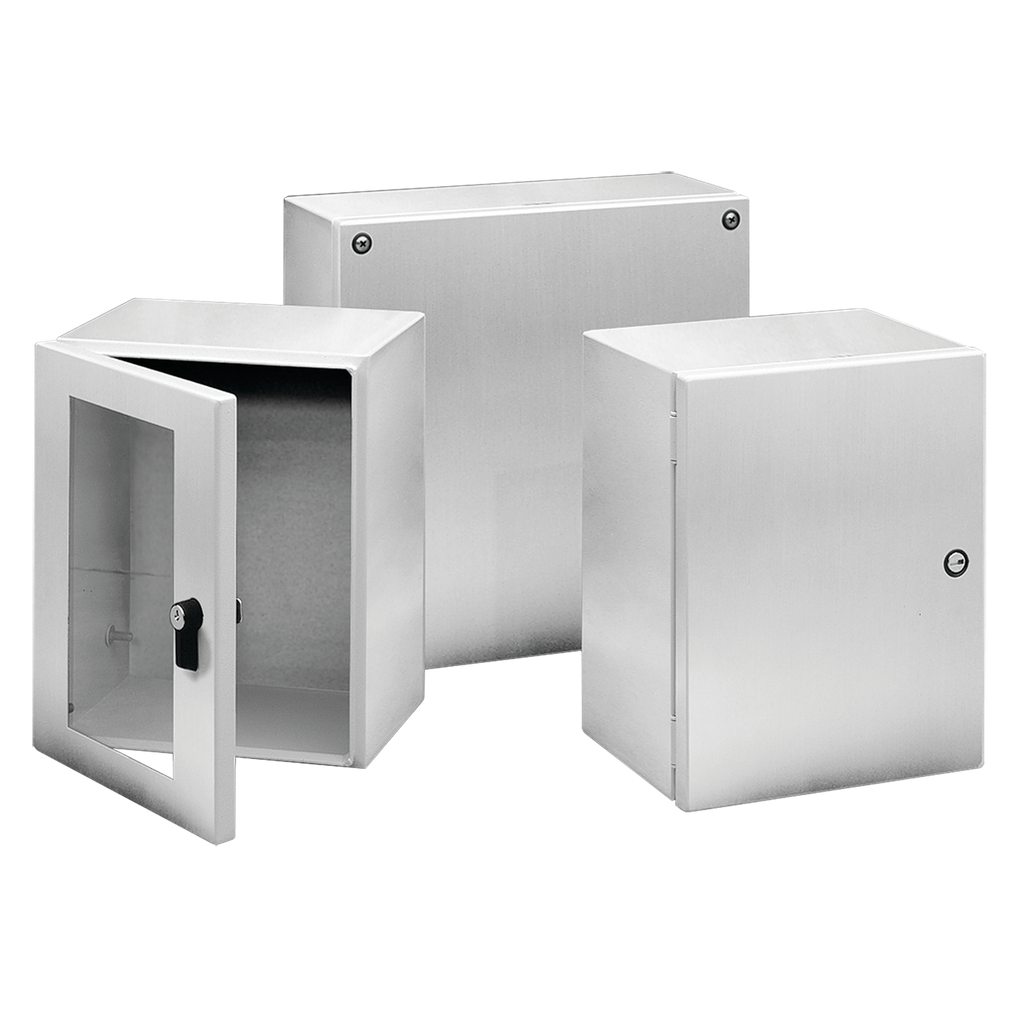

Product image for Hoffman LHC201512SS INLINE, Type 4X, 200x 150x 120mm, SS Type 304
Email

Hoffman LHC201512SS INLINE, Type 4X, 200x 150x 120mm, SS Type 304

Manufacturer: nVent Hoffman | Catalog # LHC201512SS | North Coast Part # 692057
$772.16/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Aesthetic styling, flush latches and an attractive, stroked finish make InLine Enclosures an excellent choice when style and functionality are important. InLine Enclosures have an outward formed body flange to prevent contaminants from entering the enclosure and are available in three cover styles: hinged window door, hinged solid door and solid screw cover.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Body Thickness
1.98 mm
Cover Type
Hinged with Quarter-Turn Latches
IP Rating
66
Material
Stainless Steel
Mounting Type
Wall, Flush
Size
200x150x120mm
Standard
12,4X,CSA File No. 42186: Type 4,File No. E61997,IEC 60529,IP66,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4,Type 4,UL 508A Listed
Type
Single Lock, Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Inline™

General Product Info

12-Digit UPC
783510618209
Color
Stainless Steel
Finish
Powder Coated
GTiN
00783510618209
Product UPC
78351061820
Weight
5 lb

Dimensions

Depth
120 mm
Height
200 mm
Length
8.2 Inch
Width
150 mm
Features
  • Seams continuously welded and ground smooth
  • External formed body flange trough
  • Large perimeter body opening
  • Fastening holes in back of body for direct mounting or optional external mounting brackets
  • Seamless foam-in-place gasket
  • M6 bonding provision on cover, M6 ground stud in body
  • Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
