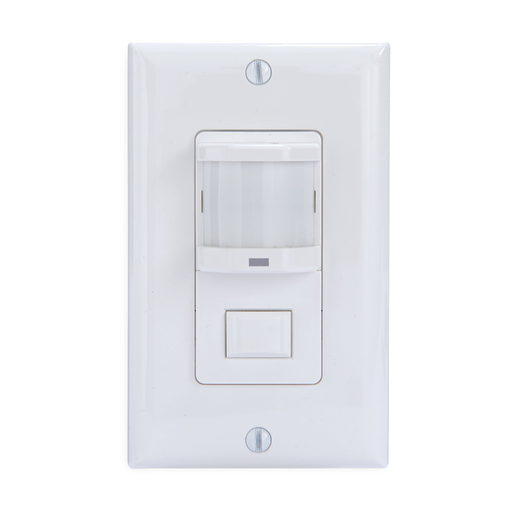

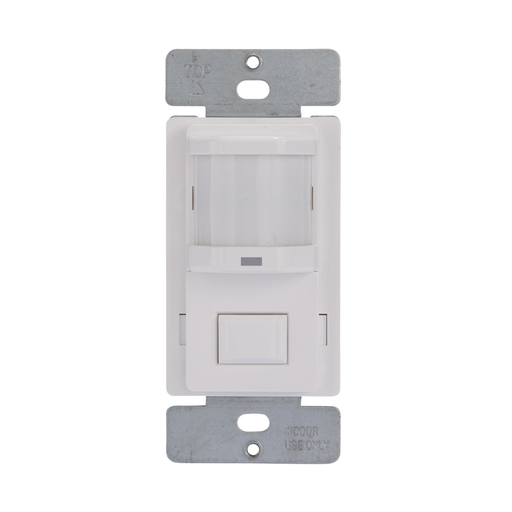

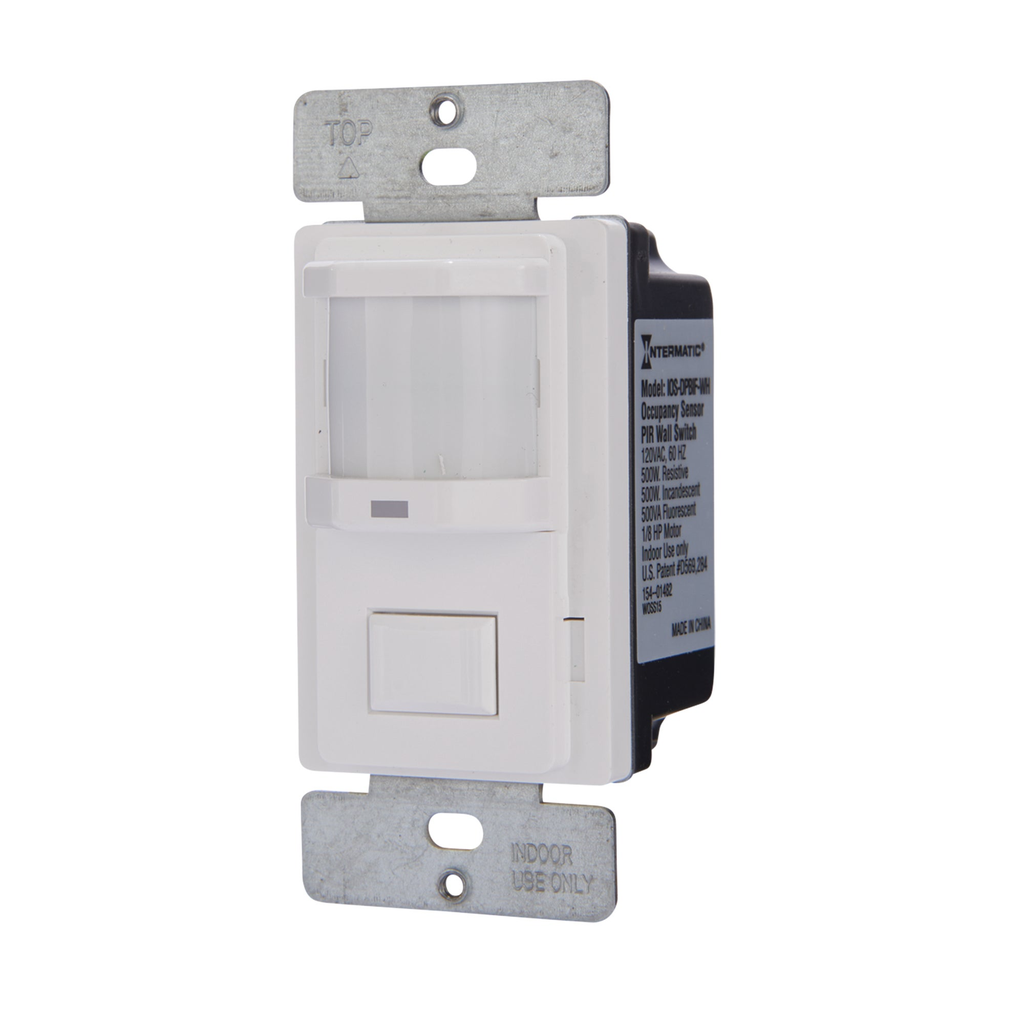

Product image for Intermatic IOS-DPBIF-WH 120 VAC 60 Hz White 150 Degrees Occupancy In-Wall PIR Sensor Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Intermatic IOS-DPBIF-WH 120 VAC 60 Hz White 150 Degrees Occupancy In-Wall PIR Sensor Switch

Manufacturer: Intermatic | Catalog # IOS-DPBIF-WH | North Coast Part # 692801
$66.64/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.

Technical Information

Applications
Indoor Sensing Control
Input Voltage
120 V
Load Type
500 VA @ 120 VAC (Fluorescent),500 WTT @ 120 VAC (Tungsten)
Max Operating Temperature
131 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall
Operating Cycles
20000
Operating Temperature
131 degrees F
Response Time
15 sec - 30 min
Sensing Range
150 DEG 980 SQ-FT
Sensor Type
Passive Infrared
Standard
CULus Listed,Title 24 Compliant,UL/cUL Listed
Temperature Rating
32 - 131 degrees F
Type
Electronic, Magnetic
Voltage
120 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275125254
Color
White
GTiN
00078275125254
Product UPC
07827512525
Weight
0.4 lb

Dimensions

Depth
1-5/8 Inch
Height
2-3/4 Inch
Warranty Length
2 yr
Width
1.438 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive Infrared (PIR) sensing for presence detection
  • Adjustable PIR sensitivity
  • Adjustable time delay 15 sec to 30 min
  • Adjustable ambient light sensor override for occupancy switch models
  • Coverage: 150, 980 ft2 with non-obstructed views
  • IOS-DPBIF and IOS-DPBV models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
  • 'No neutral' models offered for retrofit applications
  • Fits standard decorator wall plate (included)
  • Occupancy (Automatic ON/ Manual or Automatic OFF)
  • For use with Magnetic Ballasts
