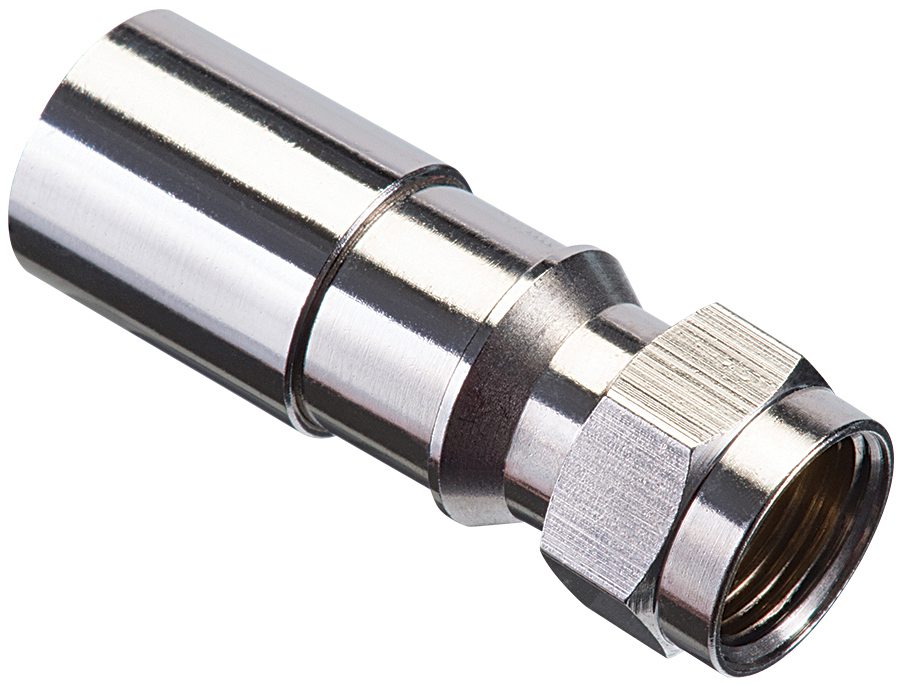

Product image for IDLC 92-659 RTQ™ XR™ F Compression
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

IDLC 92-659 RTQ™ XR™ F Compression

Manufacturer: Ideal Industries | Catalog # 92-659 | North Coast Part # 693554
$179.39/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The IDEAL RTQ™ XR™ series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.All RTQ™ connectors require an industry standard 1/4. x 1/4. cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal™ Pro or LinearX® compression tool.

Technical Information

Applications
Termination of an F Type connection , compression style ,RG6
Material
Brass
Type
F-Type

Manufacturer Information

Brand
Ideal Industries
Sub Brand
RTQ

General Product Info

12-Digit UPC
783250926596
Finish
Plated
GTiN
00783250926596
Product UPC
78325092659

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Features
  • Accepts RG-6/ RG-6 Quad/ RG-6 Plenum/ RG-6 Plenum Quad coax cables
  • Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
  • 1) Prepare RG-6 coax with a 1/4 x 1/4 strip, fold back the braiding. For RG-6 Quad, remove the outer foil layer and fold back both layers of braiding.
  • 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
  • 3) Place connector in IDEAL compression tool with standard F compression length setting and terminate.
  • 4) During termination, the body will compress(get shorter) and permanently secure the coax inside of the connector.
  • 5) Attach connector to device.
  • RTQ™ XR™ design allows Regular/Tri/Quad shield and plenum cables to work in a single connector no need to carry cable specific connectors
  • Designed for use in cable and satellite TV installations
  • WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
  • Industry standard 21mm compressed length works with non-IDEAL compression tools
  • All brass, with nickel plated bodies
  • Designed for optimal performance on 75? coaxial cables
  • >40 pounds cable retention on all models
  • 7/16 nut diameter with 3/8-32 thread
