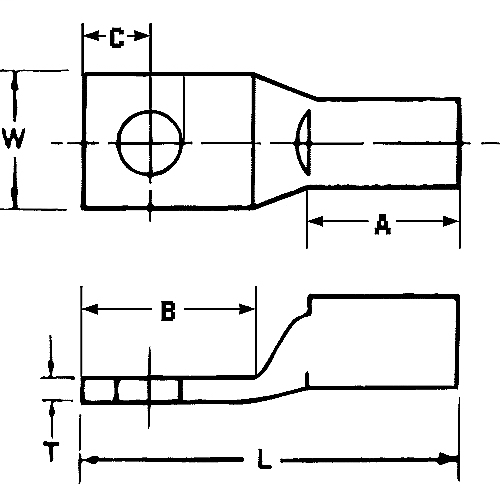

Image thumbnail 2
Email

Blackburn CTL1-38 Compression Terminal

Manufacturer: Thomas & Betts | Catalog # CTL1-38 | North Coast Part # 696754
$1,340.12/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Copper One-Hole Lug, Short Barrel, Max 35kV, 1 Str. Wire, 3/8 Bolt Size, Tin Plated, Die Color Code Green

Technical Information

Applications
For Medium Voltage Applications
Barrel Length
Short
Barrel Shape
Standard
Barrel Type
Chamfered, Standard, Short
Cable Size
1 AWG
Conductor Size
1 AWG
Die Color
Green
Material
Copper
Number of Holes
1 Hole
Number of Studs
1
Standard
UL E9809
Stud Size
3/8 in
Tongue Angle
Straight
Tongue Type
Ring
Type
Straight
Voltage
35 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786131815
Color
Green
Finish
Tin Plated
GTiN
00783786131815
Product UPC
78378613181

Dimensions

Height
2-1/2 Inch
Width
2.8 in
Features
  • Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
  • Specifically chamfered barrel for ease of installation.
  • Color-coded for matching die identification.
  • UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
  • Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
Certifications
  • UL
  • CSA
Notes
  • For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
