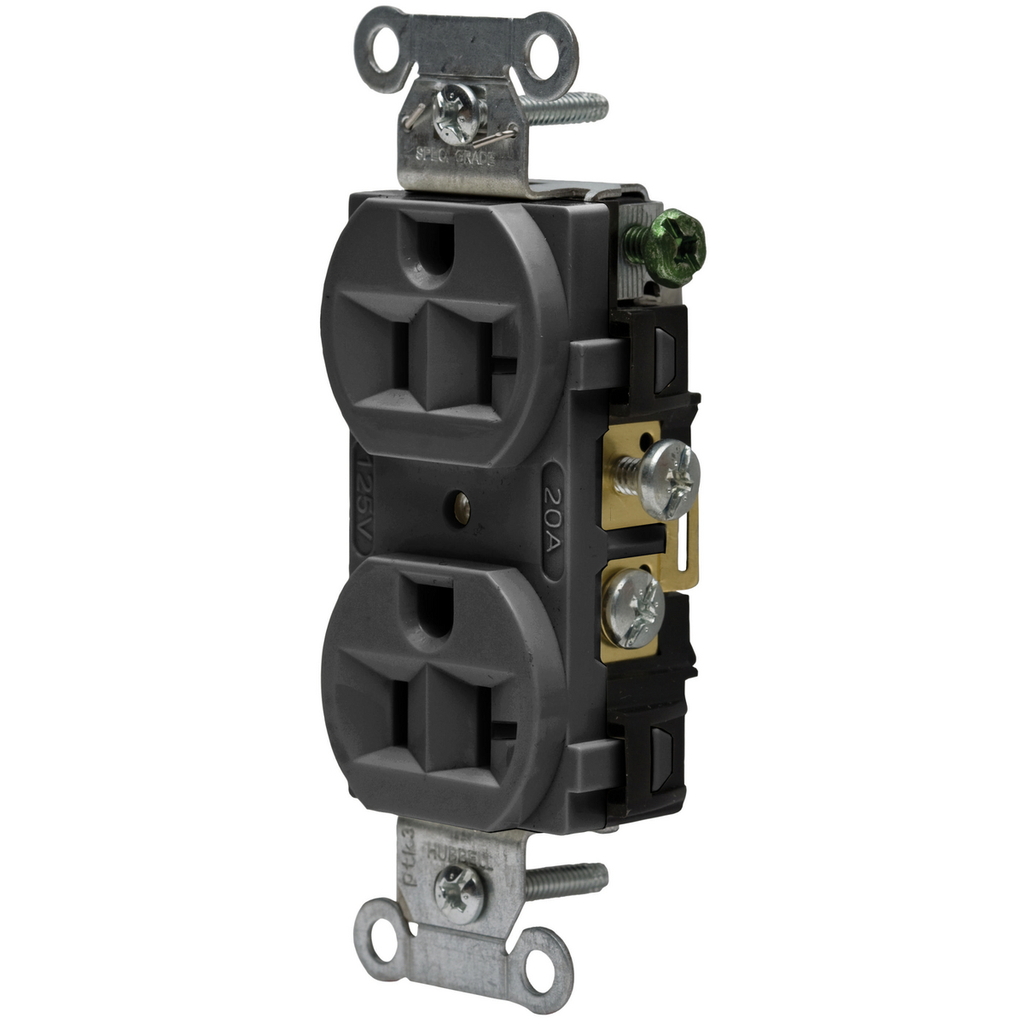

Product image for Hubbell CRF20BLK 125 Volt 20 Amp NEMA 5-20R Commercial Grade Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell CRF20BLK 125 Volt 20 Amp NEMA 5-20R Commercial Grade Duplex Receptacle

Manufacturer: Hubbell / Kellems | Catalog # CRF20BLK | North Coast Part # 697468
$4.20/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black, Single Pack.

Technical Information

Amperage
20 Amp
Applications
For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
TC Connection
Back and Side Wired
Type
Traditional, Standard Size
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585107912
Color
Black
Environmental Conditions
Indoor Only
GTiN
00783585107912
Product Series
Commercial Specification Grade
Product UPC
78358510791
Weight
0.2 lb

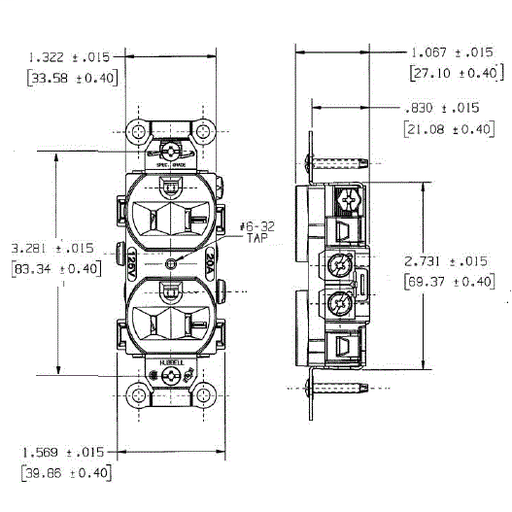

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy access split circuit tab
  • Fork terminal capable
  • Finder Groove Face
  • Triple wipe contacts
  • Self Grounding
