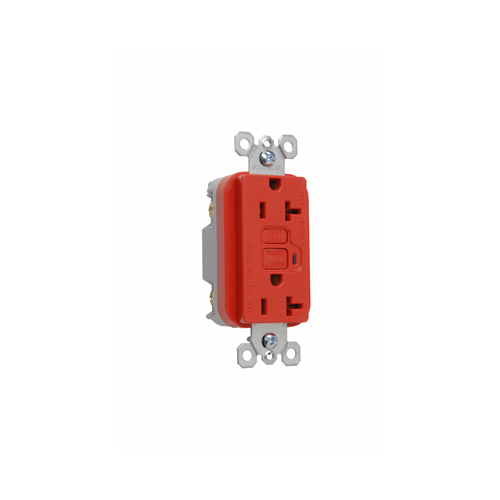

Product image for P&S 2095-NARED 20A 125V GFCI RCPT
Image thumbnail 0
Image thumbnail 1
Email

P&S 2095-NARED 20A 125V GFCI RCPT

Manufacturer: Legrand / Pass & Seymour | Catalog # 2095-NARED | North Coast Part # 701395
$61.38/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. This GFCI meets the requirements of the Buy American provision of the American Recovery and Reinvestment Act and provides the same protection as our traditional GFCI.

Technical Information

Amperage
20 Amp
NEMA
5-20R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
adorne

General Product Info

12-Digit UPC
785007011456
Color
Red
Product UPC
78500701145

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Button colors match the device face.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Ground screw has a back wire clamp for easy installation.
  • Extra-long strap.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • 10kA short circuit rating.
  • High-impact-resistant thermoplastic construction.
  • Supplied with matching TP26 nylon wall plate.
  • For covering patents, see www.legrand.us/patents.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Trip indicator light (red LED).
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Two back wire holes per terminal.
  • FSUL Listed (Federal Specification WC596).
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Tri-drive screws.
  • Dual-direction test and reset buttons.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Class A rated GFCI.
