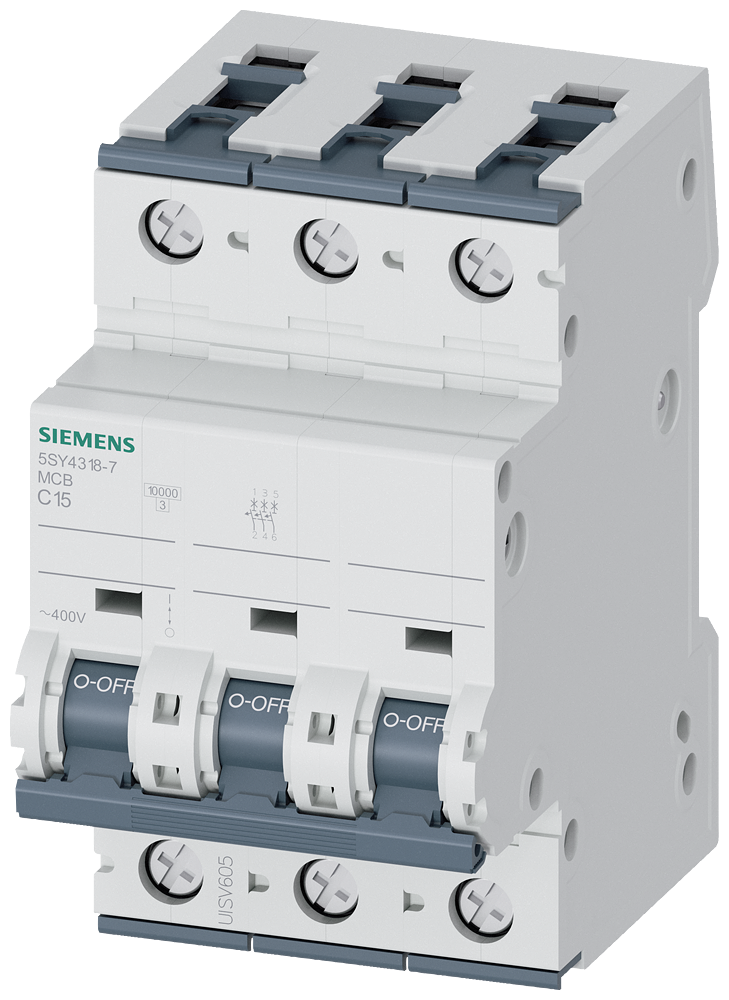

Product image for Siemens 5SY4318-7 5SY4 MCB, 3P,4
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens 5SY4318-7 5SY4 MCB, 3P,4

Manufacturer: Siemens | Catalog # 5SY4318-7 | North Coast Part # 711864
$152.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY4 Miniature Circuit Breaker, 3 Poles, 480/277V, 15A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
15 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
15 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
3 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
CSA 22.2 NO. 235,IEC,EN 60 898,EN 60 947-2,UL 1077,CE
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554889436
Class
C
GTiN
00754554889436
Product UPC
75455488943
Weight
2.515 lb

Dimensions

Height
3-1/4 Inch
Length
3.8 Inch
Width
2.200 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.04 kg
Green End-of-Life CO2
0.485 kg
Green Manufacturing CO2
1.53 kg
Green Total CO2
30.729 kg
Green Transport-to-DC CO2
0.088 kg
Green Use-Phase CO2
28.586 kg
