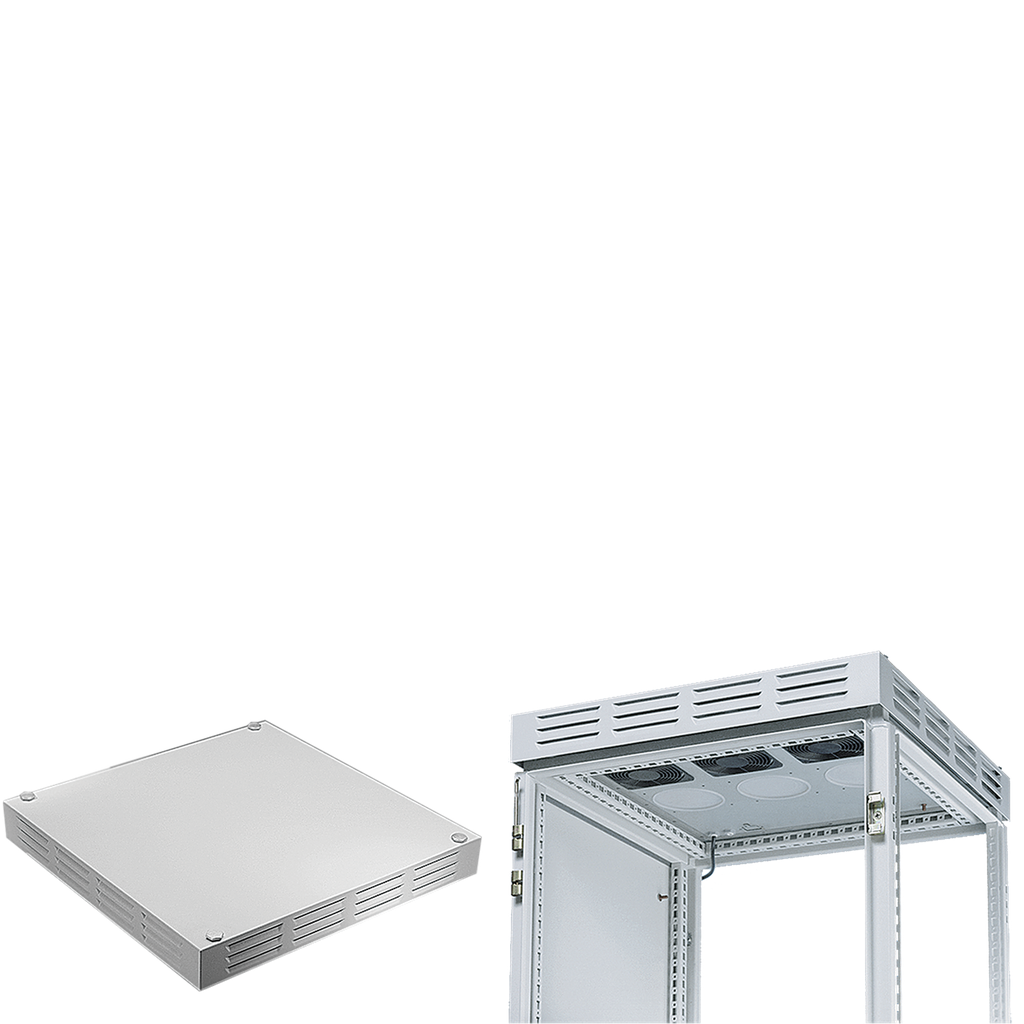

Hoffman PVT3F781 PROLINE Vented Top with Integral Fan Tray, fits 700x 800mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PVT3F781 | North Coast Part # 713865
$2,307.95/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The ProLine Vented Top with Integral Fan Tray provides a cooling/ventilation solution for electronic and networking applications. An integral fan tray with three pre-wired and mounted fans provides up to 200-300 CFM of exhaust. The deeper vented tops (500- through 800-mm deep) have integral fan trays with cutouts for mounting additional fans (see Additional Fans table). Accessory fan kits (consisting of three pre-wired fans) can be installed to provide additional airflow. Unused fan positions are provided with covers to prevent short-circuiting of airflow.

Technical Information

Applications
Datacom and Telecom Equipment, Networking, Storage and Data Center
Color Coding
RAL 7035
IP Rating
55
Material
Steel
Standard
File No. E61997,IEC 60529,IP20,NEMA/EEMAC Type 1,This Component Is Rated UL Type 1. Installing This Component On An Enclosure Brings The Enclosure Rating To UL Type 1.,Type 1,UL Component Recognized
Type
Steel
Voltage
115 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510247997
Color
Light Gray
Finish
Powder Coated
GTiN
00783510247997
Product UPC
78351024799
Weight
48 lb

Dimensions

Height
5-1/2 Inch
Length
34-1/2 Inch
Thickness
1.52 mm
Width
30.75 in
Features
  • Vented Top with Integral Fan Tray are finished with paint over plated surfaces
  • Bolts are provided to secure the vented top to frame.
  • Designed to be used in place of standard tops
  • EMC tops are finished with paint over plated 16-gauge surfaces
