Thomas & Betts C10-14F 1/4 Inch Bolt Hole 12-10 AWG Wire Range Metallic Non-Insulated Fork Terminal

Manufacturer: Thomas & Betts | Catalog # C10-14F | North Coast Part # 71403
$216.04/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

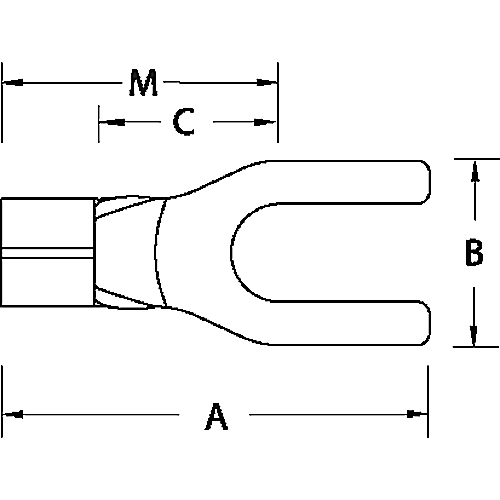

Non-Insulated Fork Terminal, Length .98 Inches, Width .50 Inches, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
150 degrees C
Terminal Type
C
Type
Long Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803500
Color
Metallic
Finish
Tin Plated
GTiN
05414363148869
Product UPC
78621080350
Used With
Round Conductors

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.63 in
Certifications
  • UL
  • CSA
Features
  • These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
