Product image for Thomas & Betts F9023 8 AWG 10 mm.. Non-Insulated Ferrule
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F9023 8 AWG 10 mm.. Non-Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F9023 | North Coast Part # 716186
$116.88/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

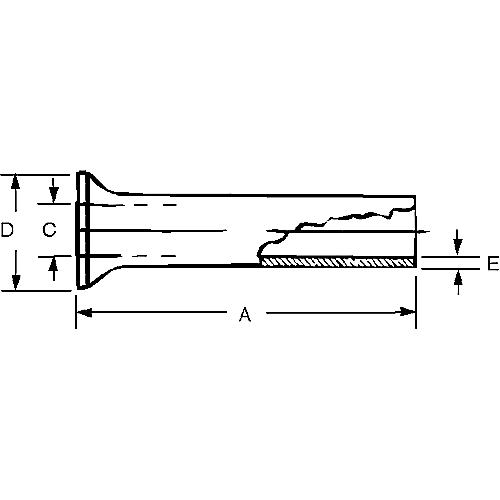

Non-Insulated Ferrule, Length .591 Inches/15mm, Inner Diameter .177 Inches/4.5mm, Outer Diameter .228 Inches/5.8mm, Conductor Size 8 AWG/10mm2, Copper, Tin Plated

Technical Information

Conductor Size
8 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated Ferrule
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210982618
Color
Metallic
Finish
Electro Tin Plated
GTiN
05415022254952
Product UPC
78621098261

Dimensions

Overall Length
0.591 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
