Thomas & Betts F9032 4 AWG 25 mm.. Non-Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F9032 | North Coast Part # 716187
$247.75/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Non-Insulated Ferrule, Length .984 Inches/25mm, Inner Diameter .287 Inches/7.3mm, Outer Diameter .374 Inches/9.5mm, Conductor Size 4 AWG/25mm2, Copper, Tin Plated

Technical Information

Conductor Size
4 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated Ferrule
Wire Size
4 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336107
Color
Metallic
Finish
Tin Plated
GTiN
05415022309416
Product UPC
78621033610
Used With
ERG4 Ferrule Tools

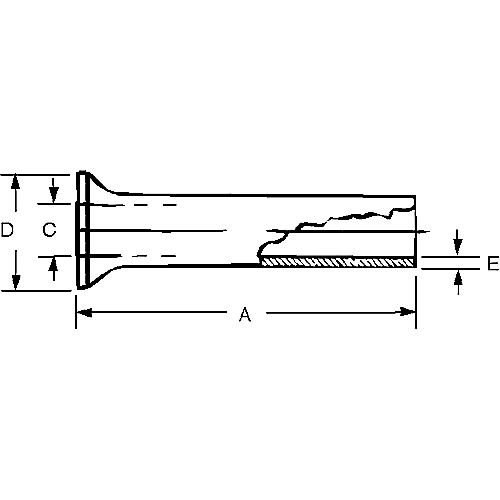

Dimensions

Inside Diameter
0.287 in
Outside Diameter
0.374 in
Overall Length
0.984 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
