S-A P3054B3200CU PL LC MB 30S/54C 3

Manufacturer: Siemens | Catalog # P3054B3200CU | North Coast Part # 718032
$1,502.49/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Pick Up

at Auburn Closes 3:00pm PT
1 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet

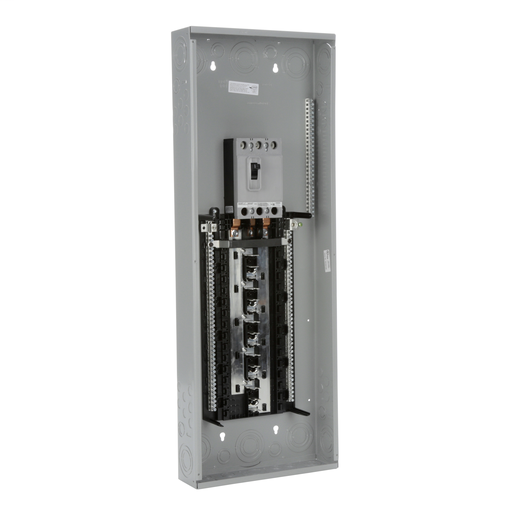

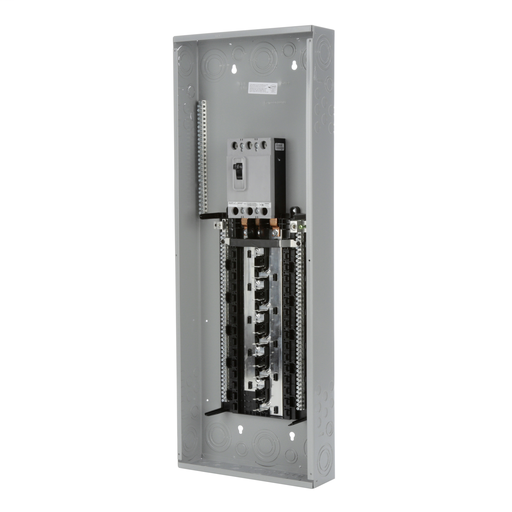

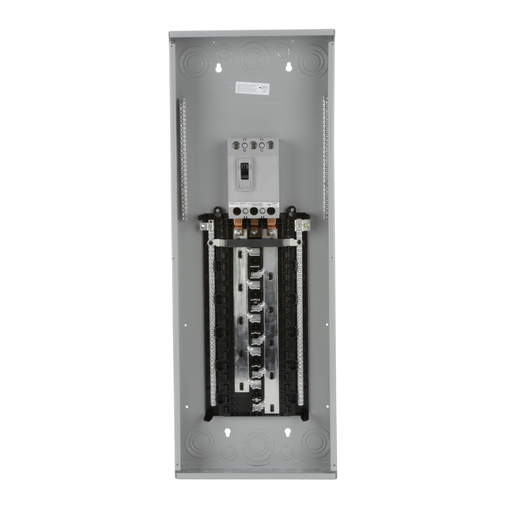

SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 30 1-INCH SPACES ALLOWING MAX 54 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 22KA INTERRUPT. SPECIAL FEATURES: COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.

Technical Information

Amperage
200 Amp
Applications
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Bus Rating
COPPERBUS
Cable Size
N/A
Circuit Breaker Type
200A
Conductor Size
250 - 750 kcmil
Cover Type
PL Series
Enclosure
TYPE1
Interrupt Rating
22 kAIC
Material
Aluminum
Mounting Type
FLUSH / SURFACE
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Spaces
30
Size
3818
Type
PLSERIESASSEMBLEDLOADCENTER
Voltage
120 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
UL

General Product Info

12-Digit UPC
662643853872
GTiN
00662643853872
Product UPC
66264385387
Used With
Siemens 400 A 3VA5/3VA6 Circuit Breaker
Weight
46.044 lb

Dimensions

Height
41-1/2 Inch
Length
16 Inch
Width
5.750 in

Certifications and Compliance

Country of Origin
Mexico
