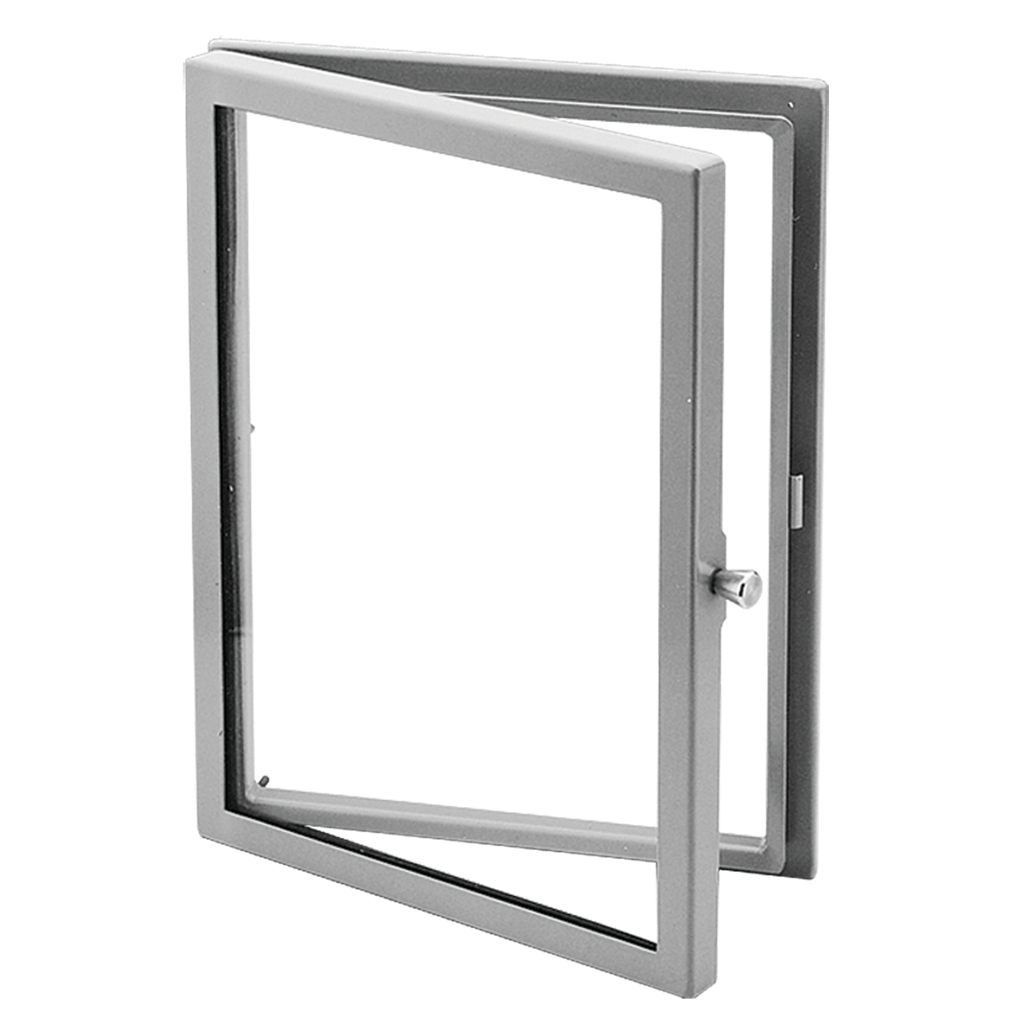

Product image for Hoffman APWK2016H Type 12 Hinged Window Kit, 20" x 16" x 1.49, Gray, Steel
Email

Hoffman APWK2016H Type 12 Hinged Window Kit, 20" x 16" x 1.49, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # APWK2016H | North Coast Part # 720216
$926.59/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Hinged Window Kit, Type 12 is used as a viewing window where access to components mounted behind the window is required. It can be easily mounted by drilling the appropriate mounting holes. Continuous gaskets on all openings maintain UL Type 12 rating.

Technical Information

Applications
Use as A Viewing Window Where Access to Components Mounted Behind the Window is Required
Color Coding
ANSI 61
Enclosure Rating
12
Enclosure Type
NEMA 12
Material
Steel
Size
20.00x16.00x1.49 in
Standard
CSA Type 12,File No. 42186,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Component Recognized
Type
Hinged

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510197100
Color
Gray
Finish
Powder Coated
GTiN
00783510197100
Product UPC
78351019710
Weight
9.2 lb

Dimensions

Depth
38 mm
Height
2-1/2 Inch
Length
508 mm
Thickness
1.52 mm
Width
406 mm
Features
  • Window is .25-in. (6-mm) clear polycarbonate
  • Mounting hardware is provided
