Blackburn WR369 Compression Connector

Manufacturer: Thomas & Betts / Blackburn | Catalog # WR369 | North Coast Part # 722992
$32.51/ea
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page MDM Safety Data Sheet

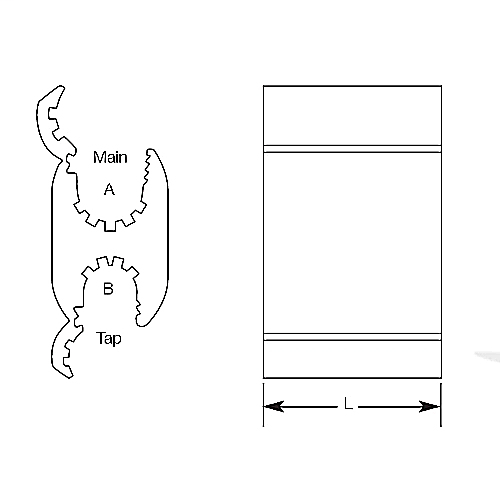

Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str., Tap: 1-3 ACSR, 1/0-2 Str., 1 Sol., Die: D, D3

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 1-7/8 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 4/0-3/0 ACSR or 4/0-3/0 STR AWG ; Tap: 1-3 ACSR or 1/0-2 STR or 1 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100187
Finish
Tin Plated
GTiN
00783786100187
Product UPC
78378610018
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
1-7/8 Inch
Features
  • Enables excellent connector contact without distorting the conductor's shape.
  • Fold-in tabs provide positive tab interlock as tool closes.
  • RUS accepted and complies with ANSI C119.4
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
Notes
  • Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.
