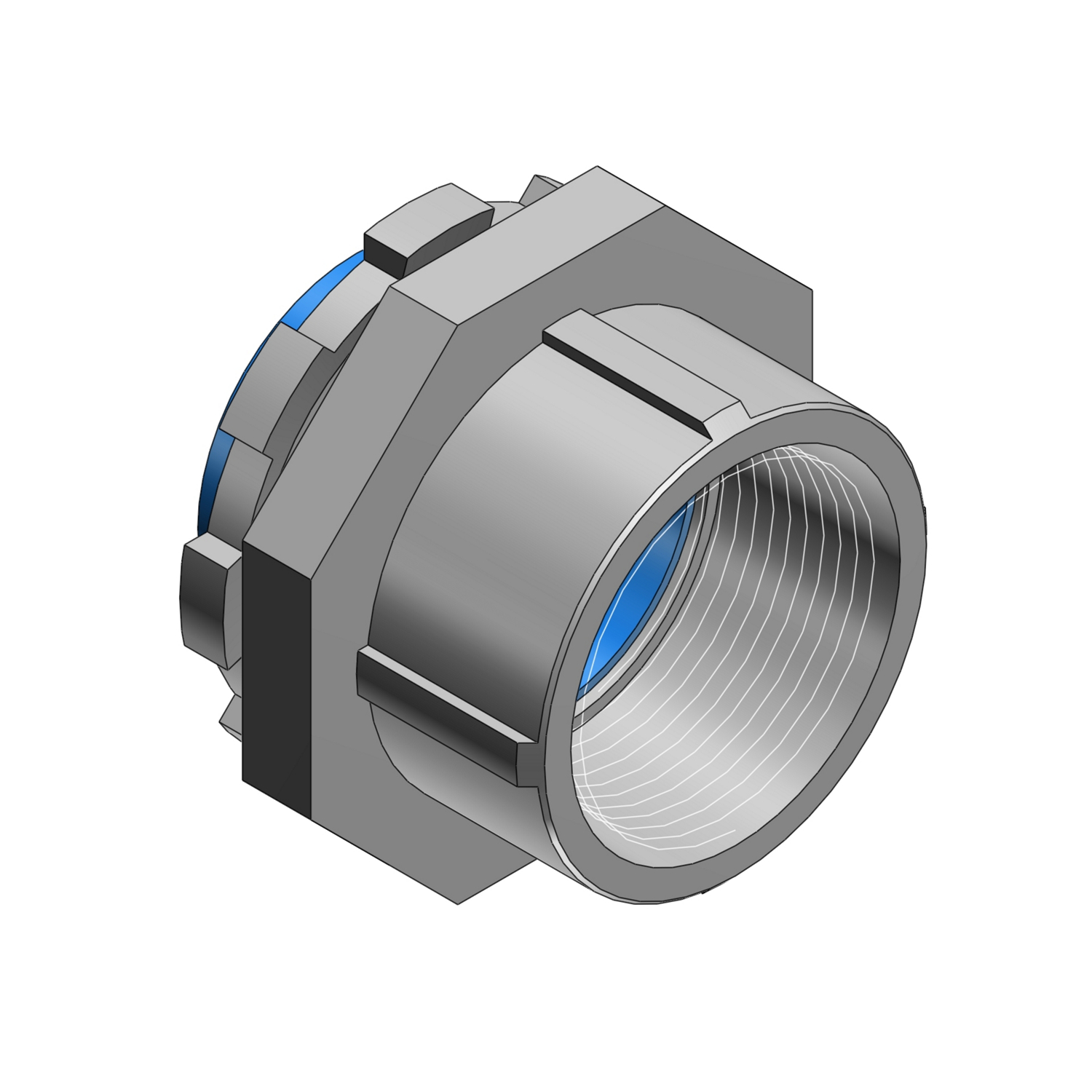

Thomas & Betts 410-TB 4" Rigid/IMC Bullet Hub w/ Bonding Locknut, Nylon Insulated

Manufacturer: Thomas & Betts | Catalog # 410-TB | North Coast Part # 723023
$55,819.76/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
4 Inch Bullet Hub Connector, Malleable Iron Nylon Insulated for Use with Rigid/IMC Conduit

Technical Information

Applications
To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
Connection Type
NPT
Material
Steel
Operating Temperature
0 To 105 degrees C
Size
4 in
Temperature Rating
0 - 105 degrees C
Thread Type
NPT
Trade Size
4 Inch
Type
Insulated, Dusttight, Watertight, Raintight

Manufacturer Information

Brand
ABB
Sub Brand
Bullet®

General Product Info

12-Digit UPC
786210299150
Box Quantity
1
Construction Type
Internal Thread
Finish
Zinc
GTiN
00786210299150
Housing Material
Other
Product UPC
78621029915
Used With
Rigid/IMC Conduit
Features
  • Rugged steel/malleable iron construction
  • Tapered internal threads for water-tight/dust-tight union
  • Threads relieved to prevent bottoming of conduit, ensuring sound assembly
  • Recessed sealing ring at box end; sealing ring captivated
  • Hardened steel/malleable iron/copper-free aluminum locknuts designed to provide high quality ground continuity; extended reach of locknut permits clamping on thin boxes and enclosures
  • Insulated throat, insulates conductors, prevents abrasion and thinning of conductor insulation, reduces wire pull effort
  • To positively bond conduit to box or enclosure.
  • Suitable for hazardous locations use in Class I, Division 2; Class II, Division 1&2; Class III, Division 1 & 2 per NEC 501-4(b); 502-4 (a) and 503-3 (a).
  • Suitable for hazardous locations use in Class II, Groups E, F, G & Class III locations per CEC 18-202; 18-252; 18-302; 18-352.
  • When used with neoprene O-ring, provides watertight threaded hub on enclosures
  • UL Listed 105 degree C
