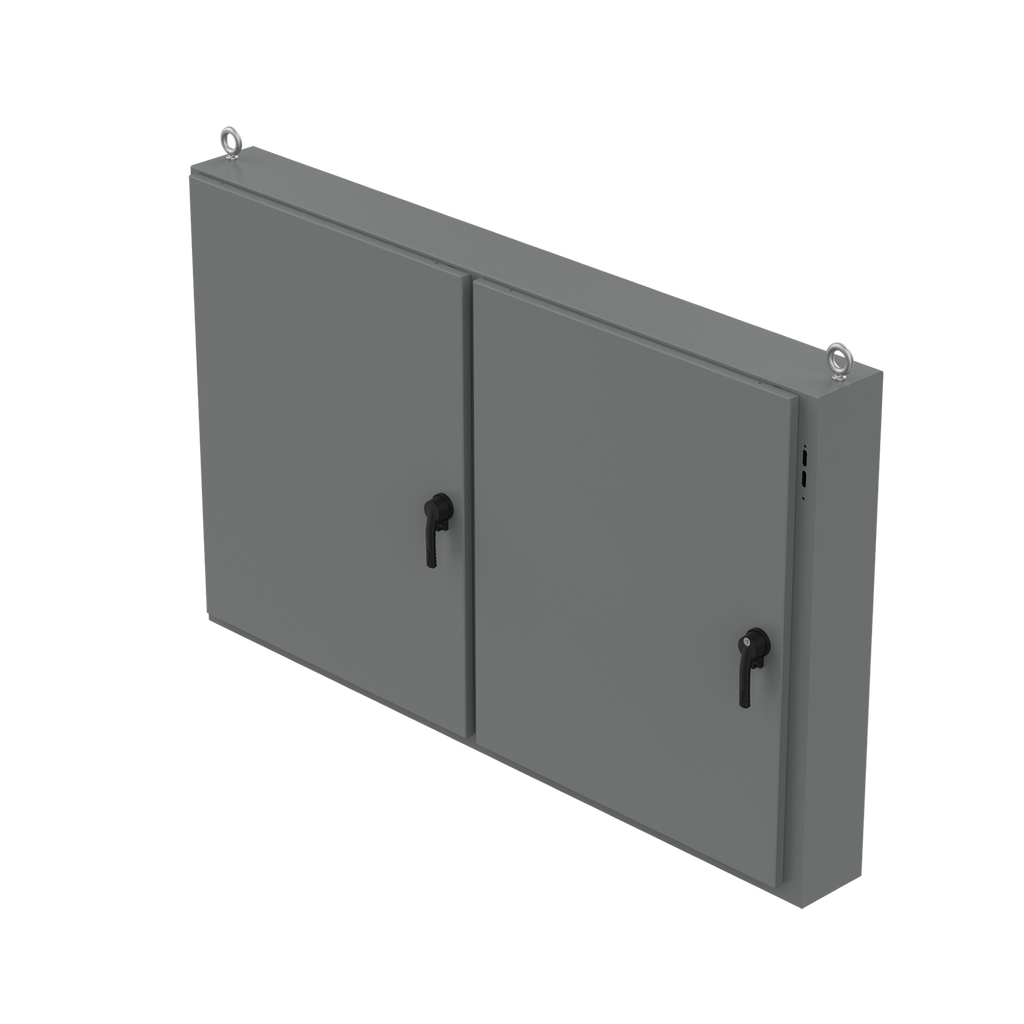

Product image for Hoffman A60x 2E7818 Low-Profile, One- to Five-Door Disconnect Enclosure, Type 12, 60" x 78.5" x 18", Gray, Steel
Email

Hoffman A60x 2E7818 Low-Profile, One- to Five-Door Disconnect Enclosure, Type 12, 60" x 78.5" x 18", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A60X2E7818 | North Coast Part # 725803
$3,311.51/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Available in one- to four-door wall-mount and one- to five-door free-stand models, the larger wall-mount sizes accommodate more components and are ideal for applications with limited floor space. Free-stand enclosures are 48- and 60-in. high to provide a clear line of site above the enclosure.

Technical Information

Applications
Arc Flash Safety, Controls and Drives, Power Distribution, Indoor
Body Thickness
.098 in
Color Coding
ANSI 61
Gauge
0.098 in Body
Material
Steel
Mounting Type
Wall
Size
60.00x78.50x18.00 in
Standard
CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Type
Double Door, Single Lock, Dust-Resistant, Gangable

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510136543
Color
Gray
Finish
Powder Coated
GTiN
00783510136543
Product UPC
78351013654
Weight
525 lb

Dimensions

Depth
18 Inch
Height
60 Inch
Length
34 Inch
Thickness
0.098 in
Width
78-1/2 in
Features
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Removable centerposts for easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
  • Oil-resistant gasket
  • Removable .127-in. thick steel panels mount on collar studs
  • Master door is far right-hand door on all enclosures
  • Defeater on master door requires a screwdriver to open
  • Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
  • Enclosures with three to five doors have three stiffeners on rear of body
