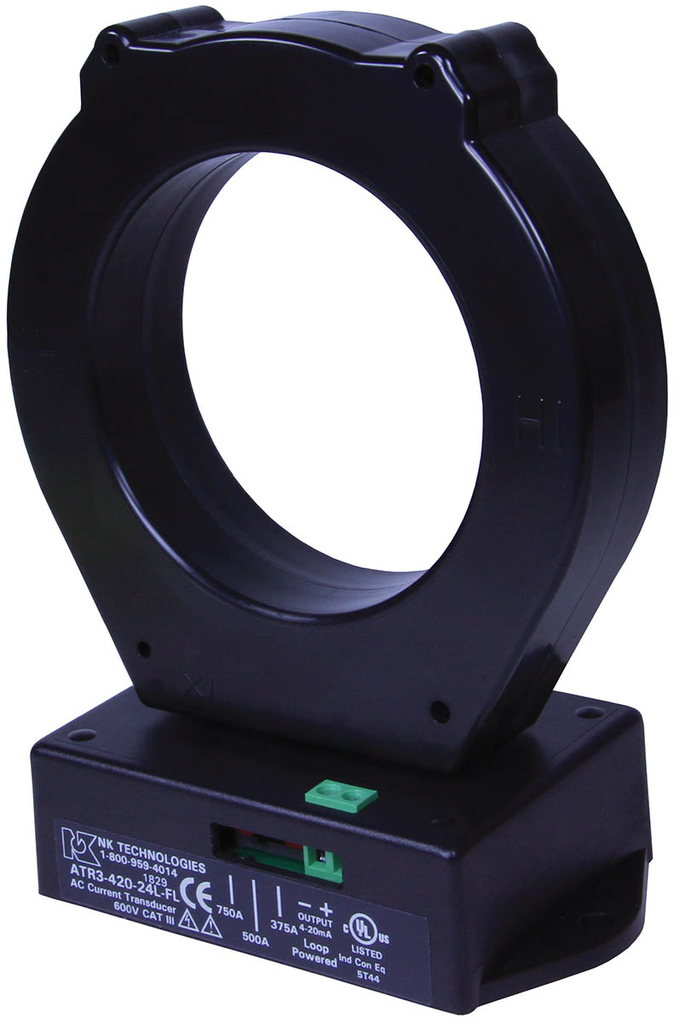

Product image for NK Technologies AT3-420-24L-FL 4 to 20 mA Sensor 24 VDC Fixed Core AC Current Transducer
Image thumbnail 0
Image thumbnail 1
Email

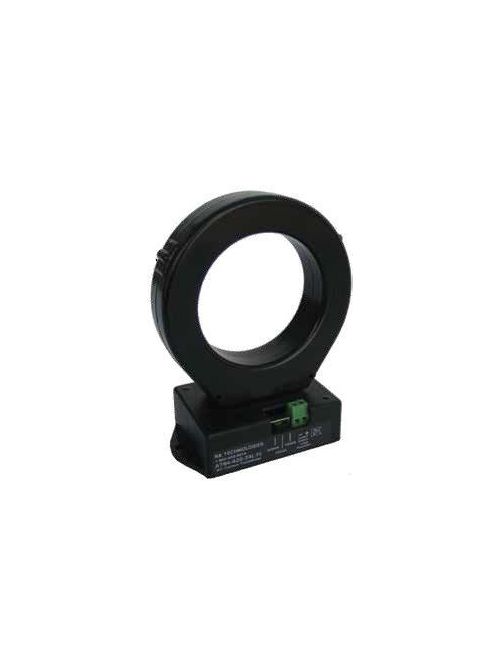

NK Technologies AT3-420-24L-FL 4 to 20 mA Sensor 24 VDC Fixed Core AC Current Transducer

Manufacturer: NK TECH | Catalog # AT3-420-24L-FL | North Coast Part # 730450
$713.10/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet CAD Drawing #1
The AT3-420-24L-FL AC Current Transducer combines a current transformer and a signal conditioner into a single package. The AT3-420-24L-FL AC Current Transducer is designed for average responding, for use on linear (sinusoidal) loads. This model produces an industry standard proportional 4-20ma analog output signal. It features a solid-core case with jumper selectable current ranges of 0-375 amps, 0-500 amps and 0-750 amps. This model uses a 24VDC loop powered power supply.

Technical Information

Accuracy
1 %
Flamability Class
UL 94V-0
Frequency
50-60 Hz
Isolation Voltage
600 V
Output
23 mA
Output Signal
20 mA
Power Supply
24 V
Sensor Type
AC Current Transducer

Packaging

Case Style
Solid Core
Shipping Weight
1.4 lb

Manufacturer Information

Brand
NK Technologies

General Product Info

12-Digit UPC
SON00129156
Product UPC
SON00129156

Dimensions

Measurement
Average Responding

Certifications and Compliance

Certifications
CE,UL,ULC
Large Aperture
  • Accommodates large conductors or wire bundles
The Right Output
  • Average Responding\" algorithm gives an RMS output on pure sine waves. Perfect for constant speed (linear) loads
Jumper Selectable Ranges
  • Reduces inventory
  • Eliminates zero and span pots
Isolation
  • Eliminates insertion loss (voltage drop)
  • Output is magnetically isolated from the input for safety
Ll, cUL & CE Approved
  • Accepted worldwide
