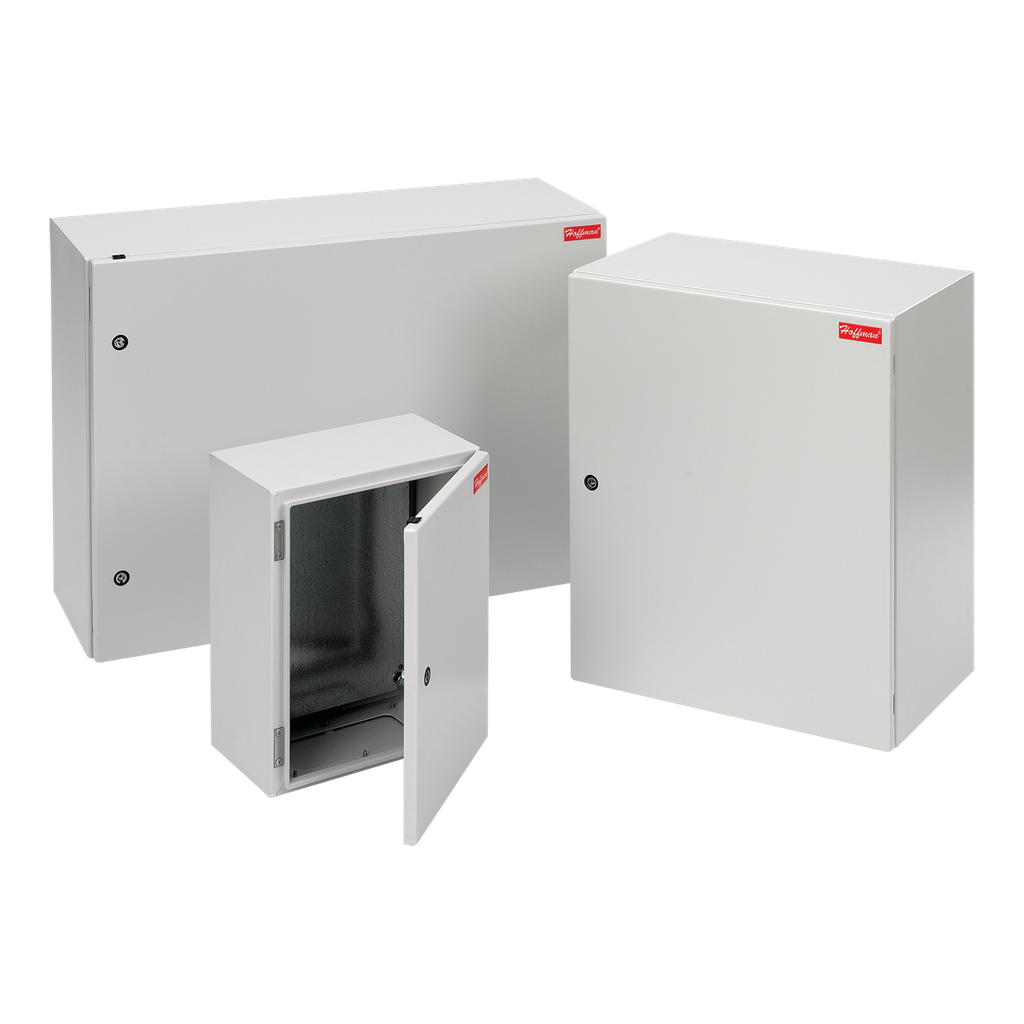

Product image for Hoffman G1000800300G FUSION G7, Type 4, 12, 1000x 800x 300mm, Steel
Email

Hoffman G1000800300G FUSION G7, Type 4, 12, 1000x 800x 300mm, Steel

Manufacturer: nVent Hoffman | Catalog # G1000800300G | North Coast Part # 732460
$1,739.16/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Innovative, metric-dimensioned wall-mount enclosure designed to house and protect electrical and electronic components in industrial environments. Provides traditional enclosure functionality with scalable internal component mounting capability using the optional internal mounting system and accessory components.

Technical Information

Applications
Controls and Drives, Indoor
Body Thickness
1.9 mm
Color Coding
RAL 7035
Door Gauge
14
Gauge
14 ga Door, 1.9 mm Body
IP Rating
66
Material
Steel
Mounting Type
Wall
Size
1000x800X300mm
Standard
12,13,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. 61997,IEC 6052,NEMA/EEMAC Type 4,Type 4,UL 508A Listed,Wall-mounting Brackets Required To Maintain UL/CSA External Mounting Requirement.
Type
Single Door, Single Lock, Dust-Resistant

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Fusion G7™

General Product Info

12-Digit UPC
783510190040
Color
RAL 7035 Light Gray
Finish
Powder Coated
GTiN
00783510190040
Product UPC
78351019004
Weight
135 lb

Dimensions

Depth
300 mm
Height
1000 mm
Length
45 Inch
Width
800 mm
Features
  • Seamless foam-in-place gasket
  • Reversible door with sealed hinges and hinge brackets
  • Gland plate(s) for enclosure bottom
  • Bonding provision on door; grounding studs (2) on body
  • Full-height galvanized steel back panel included
  • External formed 90-degree body flange channels away liquids
  • Three-point latching on enclosures 1000-mm high and taller
  • Door alignment device on doors with 3-point latching and 800 mm or wider
  • Pre-cut gland plate opening(s) in enclosure bottom
  • Quarter-turn latch(es) with 3-mm double-bit insert
  • Corner-formed door
  • Simple, easy-to-remove and install hinge pins with captivation clip
  • High-torque threadless studs and fasteners on door
  • Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
  • Hardware kit includes grounding and sealing hardware
  • Hinged on right side
  • Installation instruction provided
