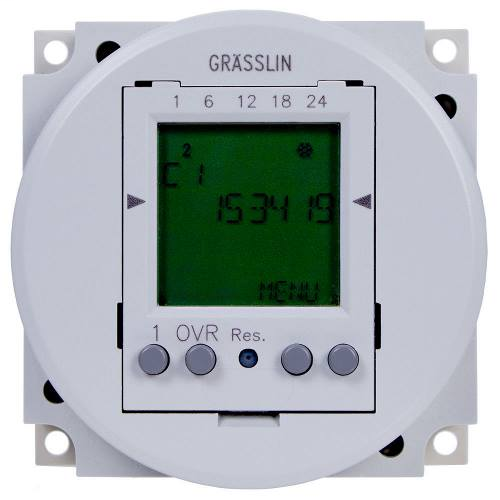

Product image for INT-MAT FM1D50-12U DGTL TMR,50 ST P
Image thumbnail 0

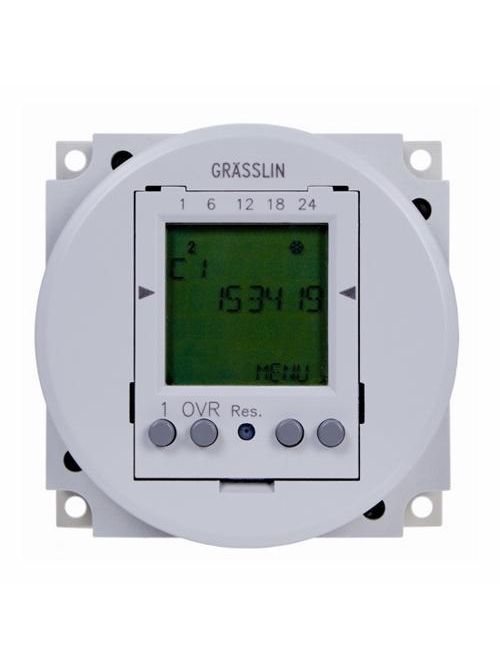

Image thumbnail 1

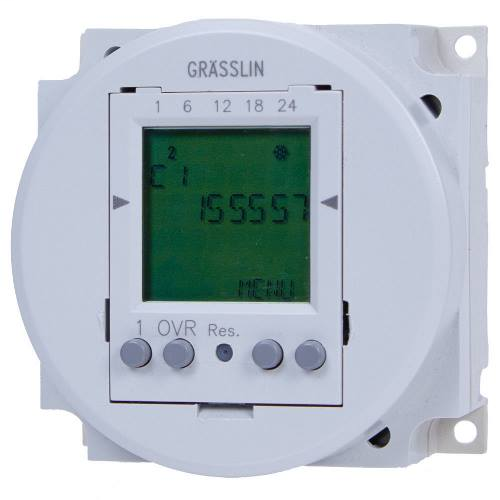

Image thumbnail 2

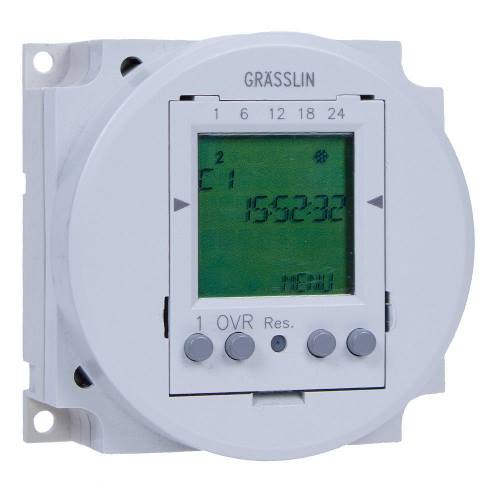

Image thumbnail 3
Image thumbnail 4
Email

INT-MAT FM1D50-12U DGTL TMR,50 ST P

Manufacturer: Intermatic | Catalog # FM1D50-12U | North Coast Part # 732479
$318.19/ea
ea
Order in multiples of 12 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The FM1D50 Series Electronic Time-Based Controls enable switching of ventilation, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one channel time switches are programmable for 24-hour or 7-day schedules. They are intended for panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail models (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Technical Information

Action
SPDT
Applications
HVACR, Pumps, Lighting, Industrial, Commercial, Fans, Heaters, Machinery
Connection Type
1/4 In Quick Connect
Contact Configuration
1 NO/1 NC
Contact Rating
12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Frequency
50/60 Hz
Input Voltage
12 V
Max Operating Temperature
131 degrees F
Min Operating Temperature
-13 degrees F
Mounting Type
Panel
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
131 degrees F
Power Consumption
4 VA
Size
2.36 HEIGHT X 2.36 WIDTH IN, 60 HEIGHT X 60 WIDTH MM
Standard
CULus Recognized E10694,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPDT
TC Connection
1/4 IN Quick Connect
Type
One Channel Electronic
Voltage
12 VAC//VDC
Wattage
1000 Watt

Manufacturer Information

Brand
Intermatic
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275116245
GTiN
00078275116245
Product UPC
07827511624

Dimensions

Depth
52 mm
Height
60.1 mm
Width
60.1 mm
Features
  • 24-Hour or 7-day applications
  • 50 Setpoint programs
  • Two preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Seven available languages: English, German, French,Italian, Spanish, Portuguese, and Dutch
  • Auto Daylight Saving Time feature
  • A & E Models come with clear dust cover
Applications
  • Generator Exercising
  • Scheduling Occupied/Unoccupied Ventilation System Operation
  • Parts Washer
  • Commercial Refrigeration
  • Pump Control
  • Motor Control
  • Fan Control
  • HVAC Control Circuits
  • Photovoltaic Control
  • Landscape Lighting
  • Security Gates
