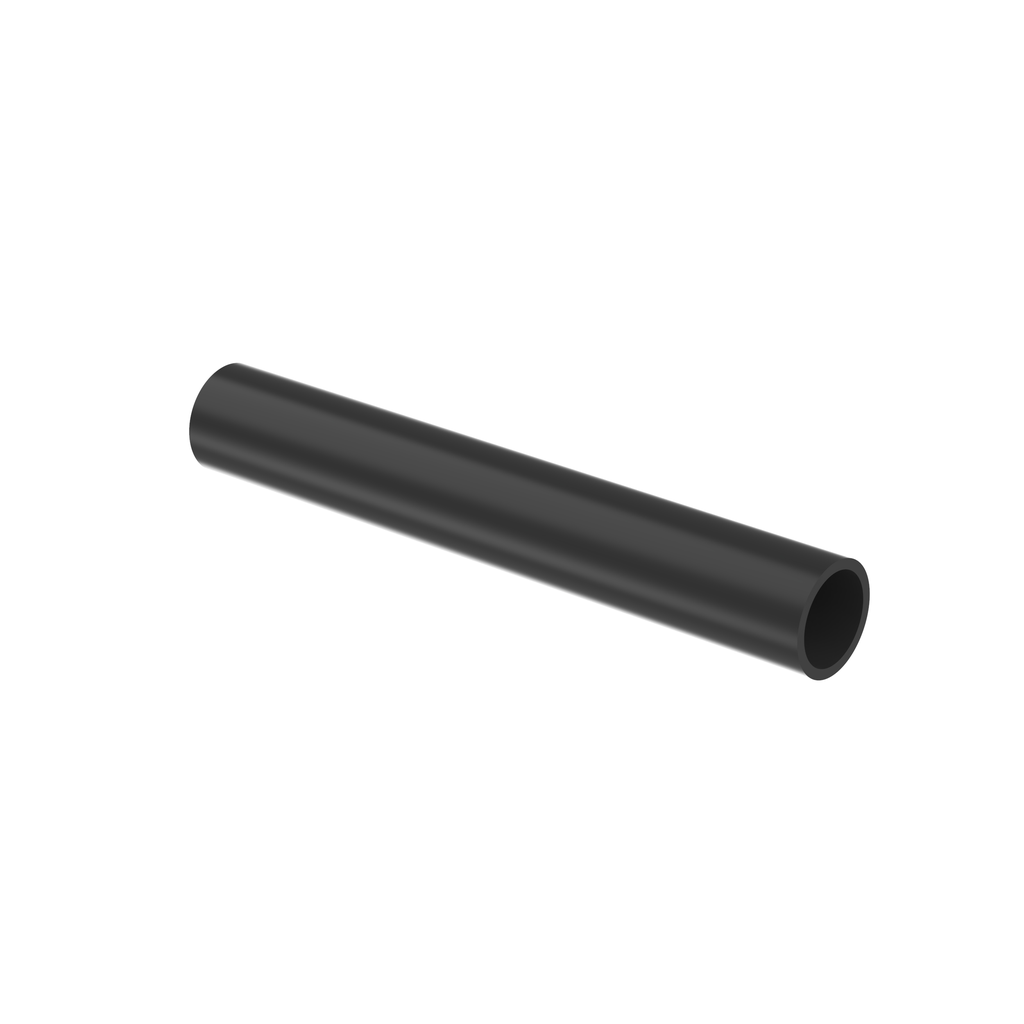

Product image for Panduit HSTTA75-48-5 Heat Shrink, Black, Adhesive. Lined PO, 4' L, 0.75" - 0.25" ID
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit HSTTA75-48-5 Heat Shrink, Black, Adhesive. Lined PO, 4' L, 0.75" - 0.25" ID

Manufacturer: Panduit | Catalog # HSTTA75-48-5 | North Coast Part # 733576
$49.75/ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet
The HSTTA75-48-5 Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67.F to 230.F (-55.C to 110.C). Cross-linked Polyolefin. 0.75" (19.1 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-67 to -230 degrees F
Type
Adhesive-Lined, Standard

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Damp-Shrink™

General Product Info

12-Digit UPC
074983369942
Color
Black
GTiN
00074983369942
Product UPC
07498336994

Dimensions

Inside Diameter
6.4 mm
Outside Diameter
19.1 mm
Overall Length
4 ft
Thickness
2.2 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
South Korea
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3
