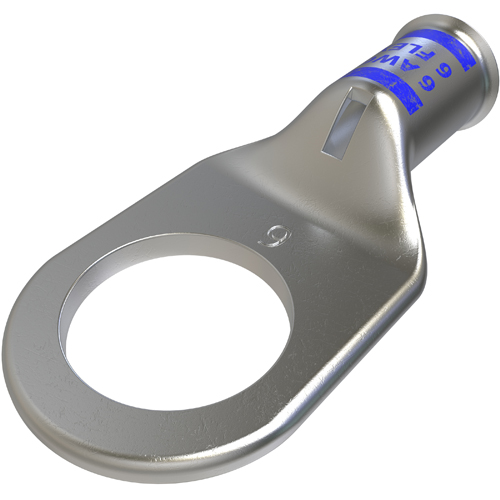

Product image for Ilsco CCL-6-12 Copper Compression Lug, Conductor Size 6, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1

Email

Ilsco CCL-6-12 Copper Compression Lug, Conductor Size 6, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CCL-6-12 | North Coast Part # 736796

$4.38/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 6 Str, sight window, Round tang end, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,

Technical Information

Applications
Copper Compression Lug
Bolt Size
1/2 IN
Color Coding
Blue
Conductor Size
6 AWG
Material
Copper
Size
L:1.55;W:0.76;H:0.385 IN
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
CCL:1 HOLE, LIGHT DUTY
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669031188
Color
Silver
GTiN
00783669031188
Product UPC
78366903118

Dimensions

Inside Diameter
0.232 in
Outside Diameter
0.299 in
