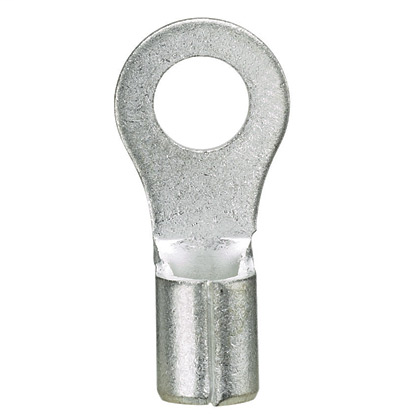

Panduit P14-10R-C Non-Insulated Ring Terminal, #18-14, #10bolt

Manufacturer: Panduit | Catalog # P14-10R-C | North Coast Part # 74026
$47.06/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
The P14-10R-C Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.28 in
Barrel Type
Brazed Seam
Color Coding
Silver
Conductor Size
14 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Min Operating Temperature
302 degrees F
Size
10 in
Standard
CSA,E2186,UL
TC Connection
Standard
Temperature Rating
302 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
18-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983802203
Color
NA
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983802203
Product UPC
07498380220

Dimensions

Outer Diameter
0.16 in
Overall Length
0.71 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
