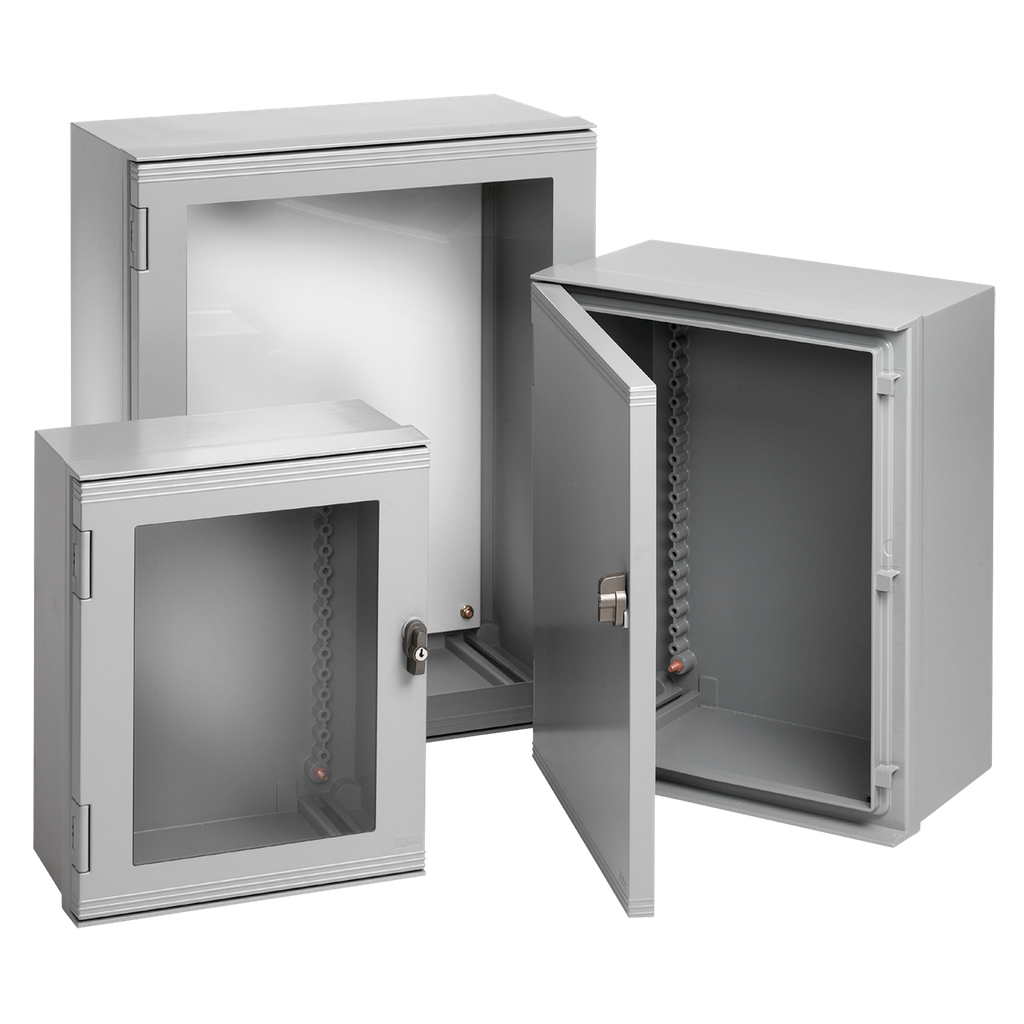

Product image for Hoffman UU606040W ULTRX, Type 4X, 625x 612x 429mm, Fiberglass
Email

Hoffman UU606040W ULTRX, Type 4X, 625x 612x 429mm, Fiberglass

Manufacturer: nVent Hoffman | Catalog # UU606040W | North Coast Part # 741318
$2,388.98/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Providing outstanding protection against corrosion and the elements, the clean lines and molded, embossed design of Ultrx fiberglass enclosures make them the most stylish and aesthetically pleasing of their class.

Technical Information

Applications
Controls and Drives; Corrosive Environments
Capacity
9294 cu in
Color Coding
RAL 7035
IP Rating
66
Material
Fiberglass
Size
24.61 x 24.09 in
Standard
CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E619977,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
UltrX™

General Product Info

12-Digit UPC
783510614201
Color
Light Gray
Finish
Matte
GTiN
00783510614201
Product UPC
78351061420
Weight
52 lb

Dimensions

Depth
16.89 Inch
Height
20 Inch
Length
26-1/2 Inch
Thickness
3.8 mm
Width
24.09 in
Features
  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
  • Fiberglass is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Enclosure may be rotated 180 degrees for left and right hinging
  • Molded-in drip shields are standard with each enclosure
  • Impact-resistant polycarbonate window is permanently bonded in place
  • Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
  • Door hinges are replaceable
  • Type 316 stainless steel quarter-turn latch
  • Optional keylocking or padlocking handle available
  • Molded-in DIN bosses
  • Molded bosses on door provide additional mounting provisions
  • Integral mounting rails provide infinite panel adjustment front to back
  • Optional data pocket is high-impact thermoplastic
