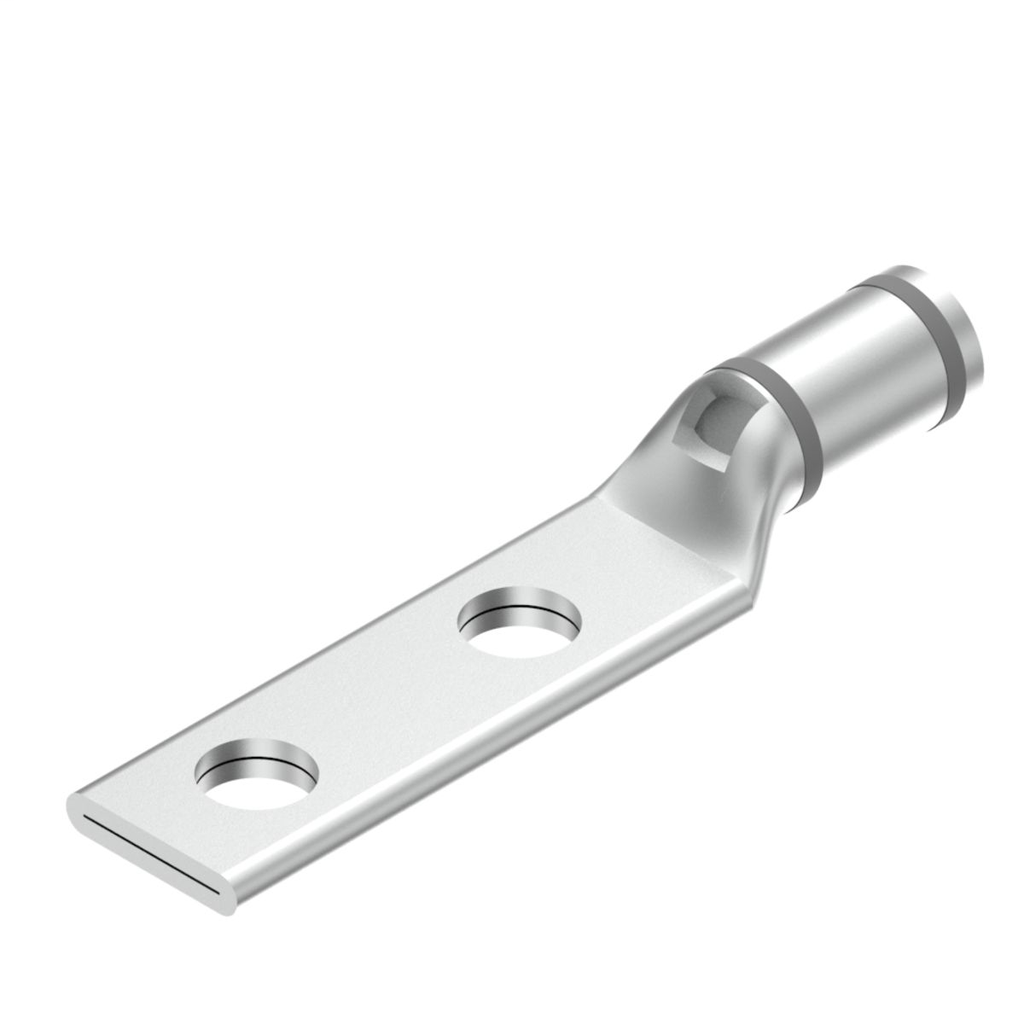

Product image for Burndy YAV4CL2TC38FX 4 Flex G,H,I,K,M,DLO, 4 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Gray Color Code, 8 or 346 Die Index
Email

Burndy YAV4CL2TC38FX 4 Flex G,H,I,K,M,DLO, 4 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Gray Color Code, 8 or 346 Die Index

Manufacturer: Burndy | Catalog # YAV4CL2TC38FX | North Coast Part # 74178
$17.35/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Copper Compression Lug, 2 Hole w/ Inspection Window, 4 Flex, 3/8" Stud, 1" Stud Hole Spacing, Short Barrel, Tin Plated.

Technical Information

Applications
For Flex Conductors
Barrel Type
Standard, Short
Cable Size
4 AWG, 4 AWG Weld, 91/24 - 105/24
Color Coding
Gray
Conductor Material
Copper
Conductor Size
4 AWG, 4 AWG Weld (91/24 - 105/24)
Connection Type
Terminal
Die Code
8
Material
Copper
Max Voltage
35000 V
Mounting Type
10 mm Hole
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Strip Length
1/2 in
Stud Size
3/8 in
Temperature Rating
90 degrees C
Type
Standard Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810022191
Color
Gray
Finish
Tin Plated
GTiN
00781810022191
Product UPC
78181002219

Dimensions

Height
0.38 Inch
Hole Size
10 mm
Length
2.68 Inch
Overall Length
2.68 in
Width
0.58 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 8, Wire Strip Length: 1/2 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT Die, (1), Y46 Tool, U4CRT Die With PUADP-1 Adapter, (1), Color Code: Gray, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper, Flexible Copper
