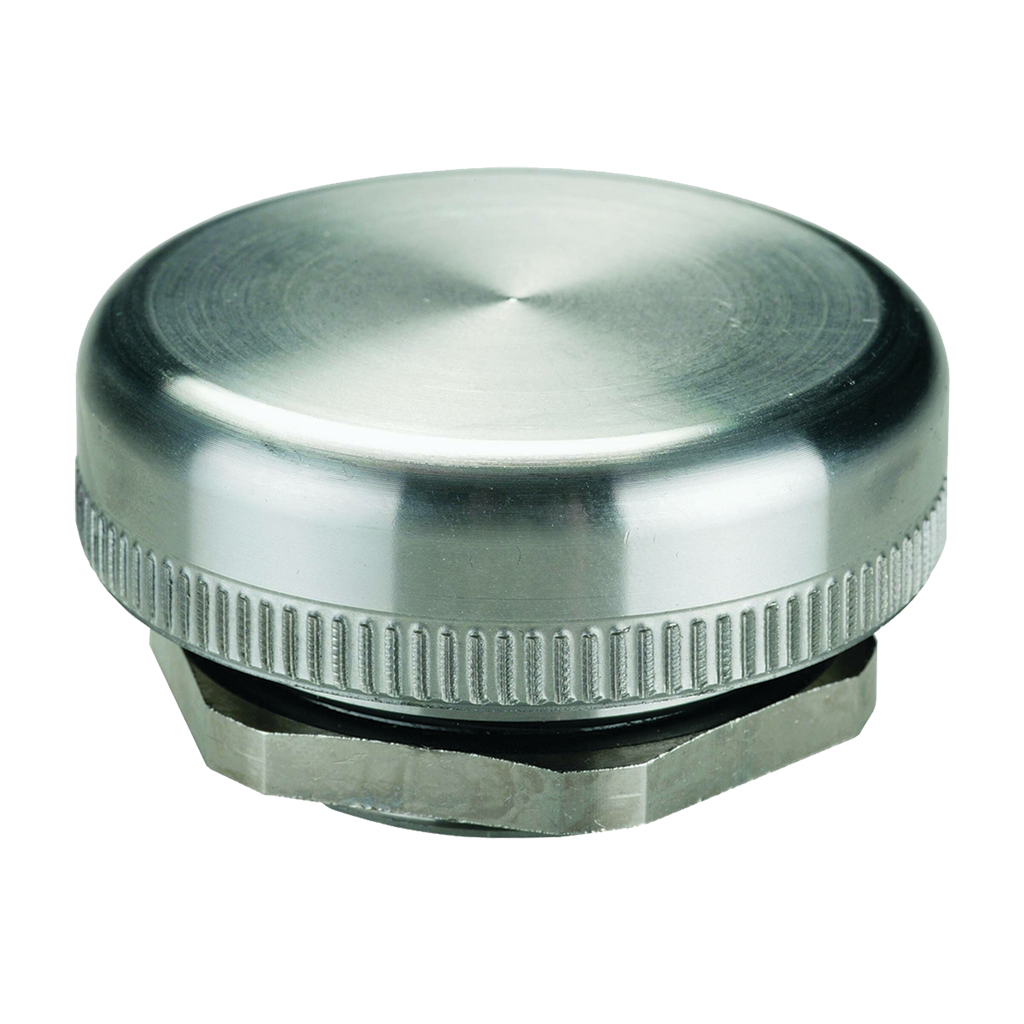

Product image for Hoffman APCDSS6 Pressure compensation device
Email

Hoffman APCDSS6 Pressure compensation device

Manufacturer: nVent Hoffman | Catalog # APCDSS6 | North Coast Part # 743109
$691.03/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Pressure differentials in a tightly sealed enclosure result from heat generated by electrical and electronic equipment within the enclosure and fluctuations of outside ambient temperature. Stainless steel pressure compensation devices provide IP66 protection in corrosive applications requiring slow pressure equalization. For optimal performance, install two plugs diagonally to each other.

Technical Information

Applications
Controls and Drives; Power Distribution
Material
Stainless Steel
Size
1.22 x 1 in
Standard
CE,IEC/EN 60529, IP66,NEMA Type 4X
Type
Cooling Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510164577
Finish
Brushed
GTiN
00783510164577
Housing Material
Stainless Steel
Product UPC
78351016457
Used With
Controls and Drives, Power Distribution
Weight
0.4 lb

Dimensions

Depth
2.28 Inch
Diameter
2.28 Inch
Height
1.22 Inch
Length
5-3/4 Inch
Width
2.28 in
Features
  • Air permeability = 42 cubic feet/hour (1,200 liters/hour) at a pressure difference of min. 70 mbar
  • Easy installation: drill one 1.60-in. (41-mm) diameter hole
  • Sealing gasket (Nitrile Buna-N Rubber)
  • Semipermeable membrane inside the plug filters moisture and dust
  • Mounting thread M40 with union nut
