ABB C749N SEISMIC BRACE LEN4.5IN HT

Manufacturer: Thomas & Betts / Superstrut | Catalog # C749N | North Coast Part # 74525
$11,000.79/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure

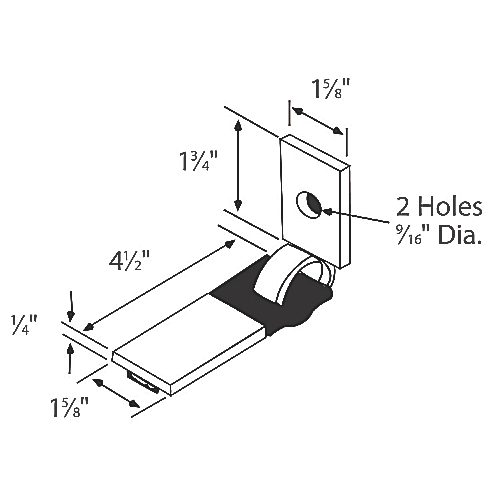

Brace, Seismic, Length 4-1/2 Inches, Height 1-3/4 Inches, Width 1-5/8 Inches, Hole Diameter 9/16 Inches, Load Safety Factor 1,500 Pounds, Steel

Technical Information

Applications

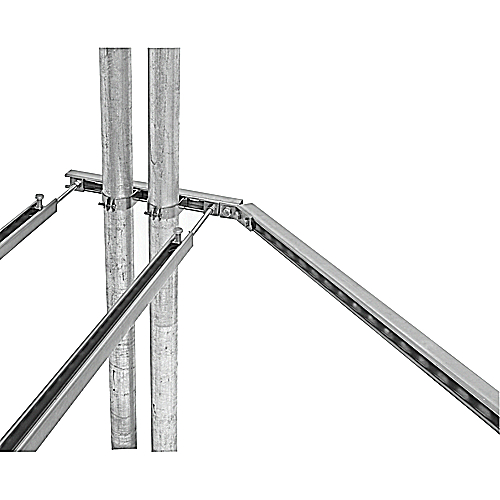

For use in seismic bracing applications
Load Capacity
7.339 kN
Material
Steel
Trade Size
9/16 Inch
Type
Pipe Straps, Pipe Clamps & Hangers (Series 700)

Manufacturer Information

Brand
ABB
Sub Brand
Superstrut®

General Product Info

12-Digit UPC
616013217832
Box Quantity
50
Finish
Gold
GTiN
00616013217832
Product UPC
61601321783

Dimensions

Height
44.45 mm
Length
114.3 mm
Width
41.275 mm
Features
  • All braces have plasticol coating on the flat member which insulates against vibration noise transmission and eliminates rattle at the connection points
