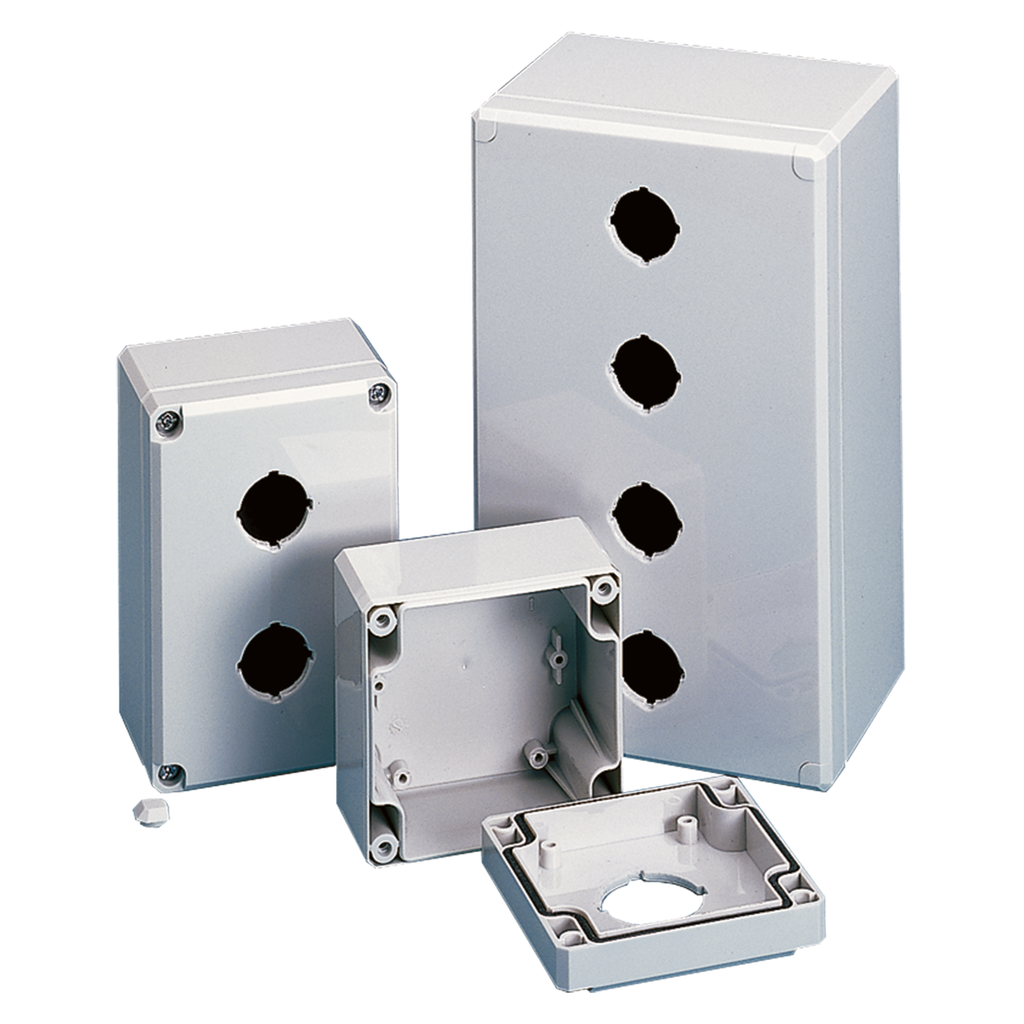

Product image for Hoffman Q4PBPCDM QLINE D Pushbutton, Type 4X, 4PB x 22.5mm, Polycarbonate
Email

Hoffman Q4PBPCDM QLINE D Pushbutton, Type 4X, 4PB x 22.5mm, Polycarbonate

Manufacturer: nVent Hoffman | Catalog # Q4PBPCDM | North Coast Part # 745742
$120.75/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
QLine D Pushbutton, Type 4X, 4PB x 22.5mm, Polycarbonate

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Color Coding
RAL 7035
Cover Type
Screw
IP Rating
66
Material
Polycarbonate
Size
200 x 120 mm
Type
4 Holes

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Qline™ D

General Product Info

12-Digit UPC
783510151492
Color
Gray
Finish
Smooth
GTiN
00783510151492
Product UPC
78351015149
Used With
22.5 mm Pushbutton
Weight
0.9 lb

Dimensions

Depth
79 mm
Height
193 mm
Length
7.9 Inch
Thickness
3 mm
Width
113 mm
Features
  • High-impact polycarbonate material is used for both body and cover
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Straight side walls permit ganging of multiple enclosures
  • Cross-point captivated cover screws are stainless steel
  • Mounting holes molded directly adjacent to cover screws
  • Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails or other components
  • Seamless foam-in-place gasket assures watertight and dust-tight seal
  • Screws provided for mounting optional panel
  • Optional panels are unpainted plated steel
  • Mounting hardware furnished
  • Material is halogen free
