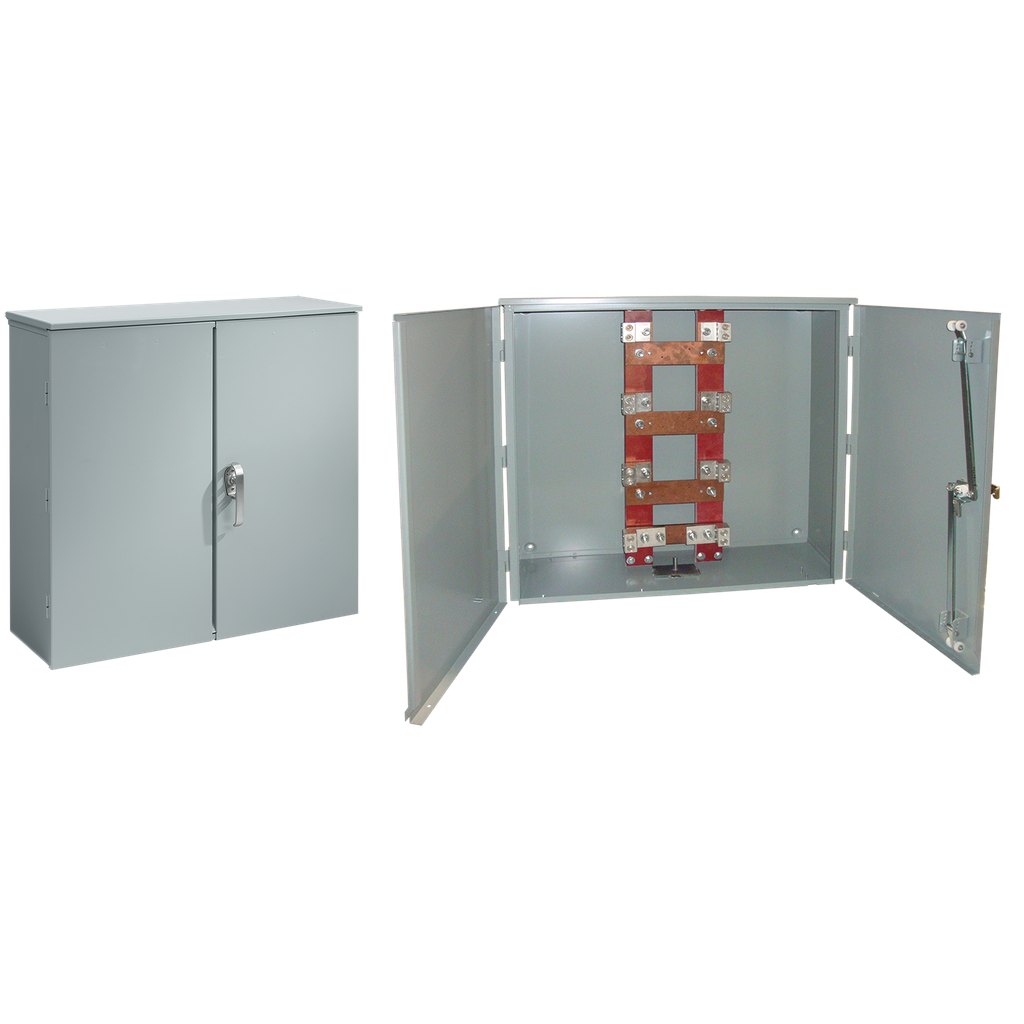

Product image for Hoffman A800HCT1R Current Transformer Cabinets, 400-800 Amp, Type 3R, 35.77x 35.8x 11", Gray, Steel
Email

Hoffman A800HCT1R Current Transformer Cabinets, 400-800 Amp, Type 3R, 35.77x 35.8x 11", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A800HCT1R | North Coast Part # 745920
$3,278.47/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
CT Cabinet, 400-800 Amp, Type 3R (for Window-Type Current Transformers) provide Type 3R protection and a factory-installed wiring buss for 400-800 Amp, 600 VAC current transformers. The assembly has a 50 k AIC rating.

Technical Information

Applications
Controls and Drives; Power Distribution
Body Thickness
2.66 mm
Color Coding
ANSI 61
Enclosure
3R
Material
Steel
Size
35.77x35.8x11.00 in
Standard
50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E240312,File No. E27525,IEC 60529,IP32,NEMA Type 3R,Type 3R,UL 414 Listed,UL 50
Style
Hinged Double-door
Type
Utility / Canadian Cabinets and Splitters

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510187019
Color
Gray
Finish
Galvanized
GTiN
00783510187019
Product UPC
78351018701
Weight
171 lb

Dimensions

Depth
11 Inch
Height
36 Inch
Length
37.38 Inch
Width
13.75 in
Features
  • Overlapping double-door model with 3-point latch and lift-off hinges
  • Door stop provision included
  • Includes padlock provisions in handle
  • Mild steel hinges
  • Use with window-type current transformer
  • Drip-shield top and seam-free sides, front and back
  • Three removable copper buss bars
  • Buss bar cross section 3.00 in. x .25 in. (76 mm x 6 mm)
  • Neutral bar
  • Aluminum mechanical lugs dual rated (Cu/Al), two conductor
  • Maximum conductor size 600 kcmil
  • Insulating bar mounting bracket, 12-gauge painted steel
  • Mounting holes on back of enclosure
  • No gasketing or knockouts
  • No gasketing or knockouts Ground stud provided
  • Enclosures are finished with paint over plated surfaces
