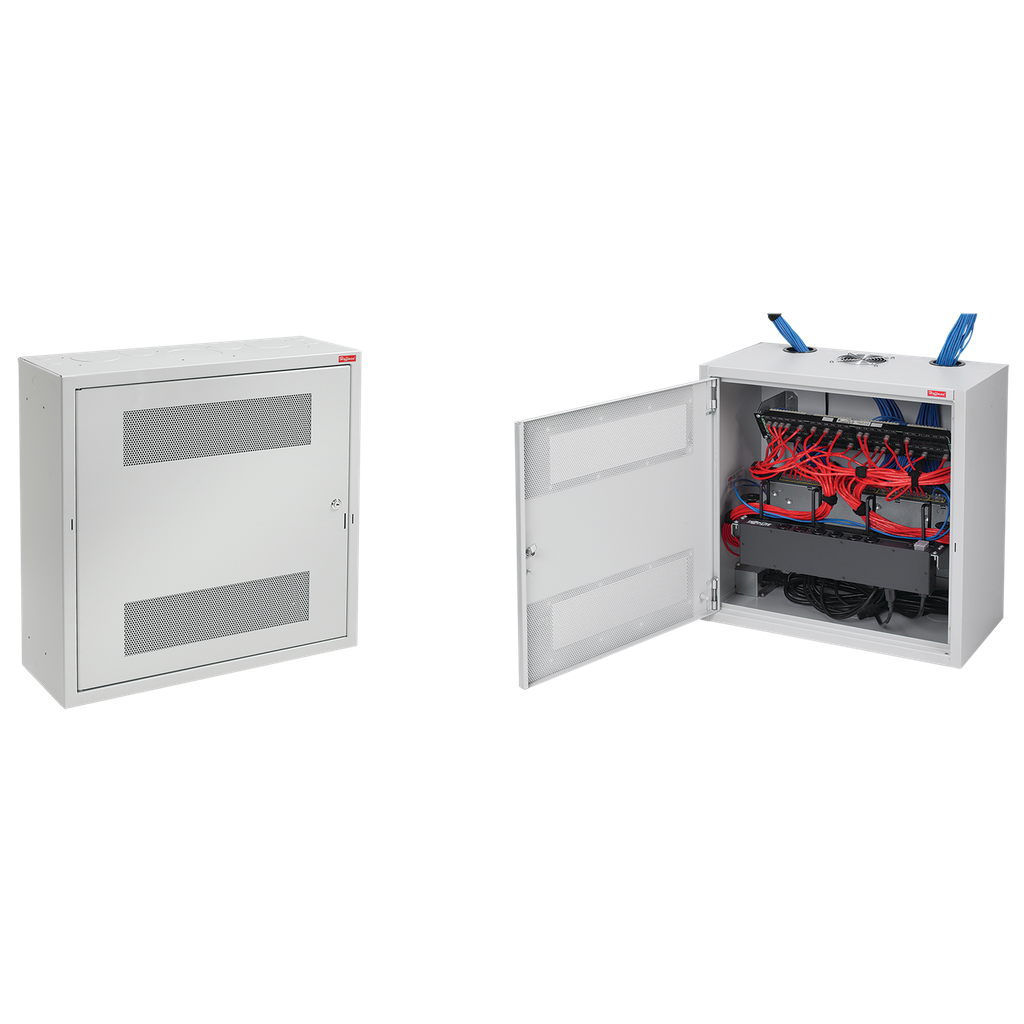

Product image for Hoffman DBS24248G D-BOX, Type 1, 24" x 24" x 8", Lt Gray, Steel
Email

Hoffman DBS24248G D-BOX, Type 1, 24" x 24" x 8", Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # DBS24248G | North Coast Part # 747749
$992.25/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Ideal for retail applications where it is necessary to house 19-inch network equipment in a public location, the horizontally-oriented D-Box is a low-profile cabinet with a hinged door for convenient front access and a combination of fixed and rotating rack angles to accommodate varying equipment sizes

Technical Information

Applications
Networking, Storage and Data Center
Body Thickness
1.52 mm
Color Coding
RAL 7035
Material
Steel
Rack Unit
4
Standard
CUL Listed Per CSA C22.2 No. 182.4,File No. E230874,File Number E61997,GR-63-CORE,Telcordia NEBSTM Requirements: Physical Protection,Type 1,UL 1863 Listed,UL 508A Listed,Ventilation Complies With UL 60950,Zone 4. Tested With 100
Type
Data Networking Wall Mounted Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510143657
Color
Light Gray
Finish
Steel/Lt. Gray
GTiN
00783510143657
Product UPC
78351014365
Weight
48 lb

Dimensions

Depth
8.34 Inch
Height
24 Inch
Length
28-1/4 Inch
Width
24 in
Features
  • Spring-loaded, self-retained hinge pins allow door removal
  • Reversible door fits flush to body with no exposed corners
  • Knockouts for 4-inch fan on top and bottom of enclosure
  • Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of enclosure; two 3-inch cable entry knockouts on back
  • 120-degree door opening for maximum equipment access
  • Multiple cable tie-down points on back of enclosure
  • Quarter-turn latch with key lock
  • Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy enclosure mounting
  • Bosses provided for mounting accessories such as cable spools
  • Patch panel 4U mounting angles rotate down for access
  • Flange around door opening protects interior
  • Bonding provision on door
  • Ground stud on body
