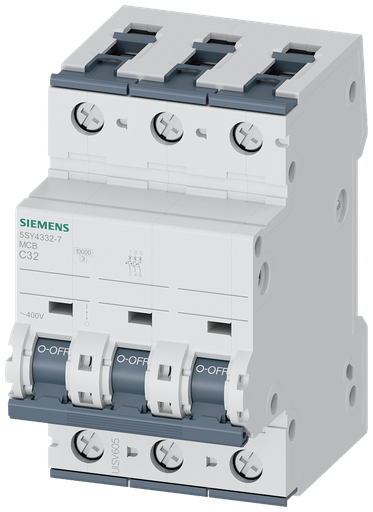

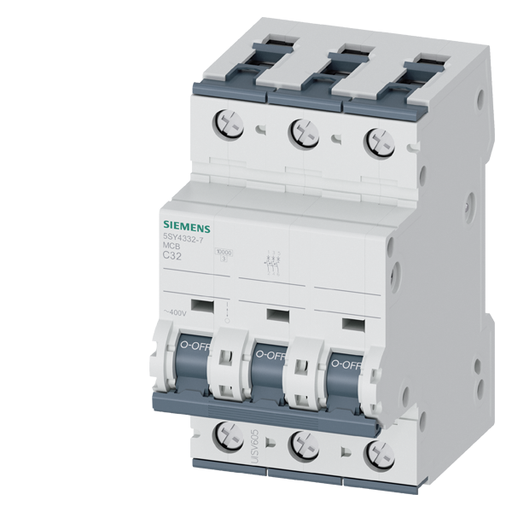

Siemens 5SY4332-7 32 Amp C Curve 3-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4332-7 | North Coast Part # 749520
$152.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY4 Miniature Circuit Breaker, 3 Poles, 480/277V, 32A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
32 Amp
Applications
Supplementary Protectors
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
32 Amp
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
3 Pole
Short Circuit Current
5 kA
Standard
EN 60 947-2,IEC,CSA 22.2 NO. 235,CE,UL 1077,EN 60 898
TC Connection
Identical wire screw connections on line and load side.
Type
5SY Supplementary Protectors
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
Controls

General Product Info

12-Digit UPC
754554876399
GTiN
00754554876399
Product UPC
75455487639
Weight
1.040 lb

Dimensions

Height
2.95 Inch
Length
3-1/2 Inch
Width
2.050 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.041 kg
Green End-of-Life CO2
0.502 kg
Green Manufacturing CO2
1.602 kg
Green Total CO2
52.061 kg
Green Transport-to-DC CO2
0.366 kg
Green Use-Phase CO2
49.55 kg
