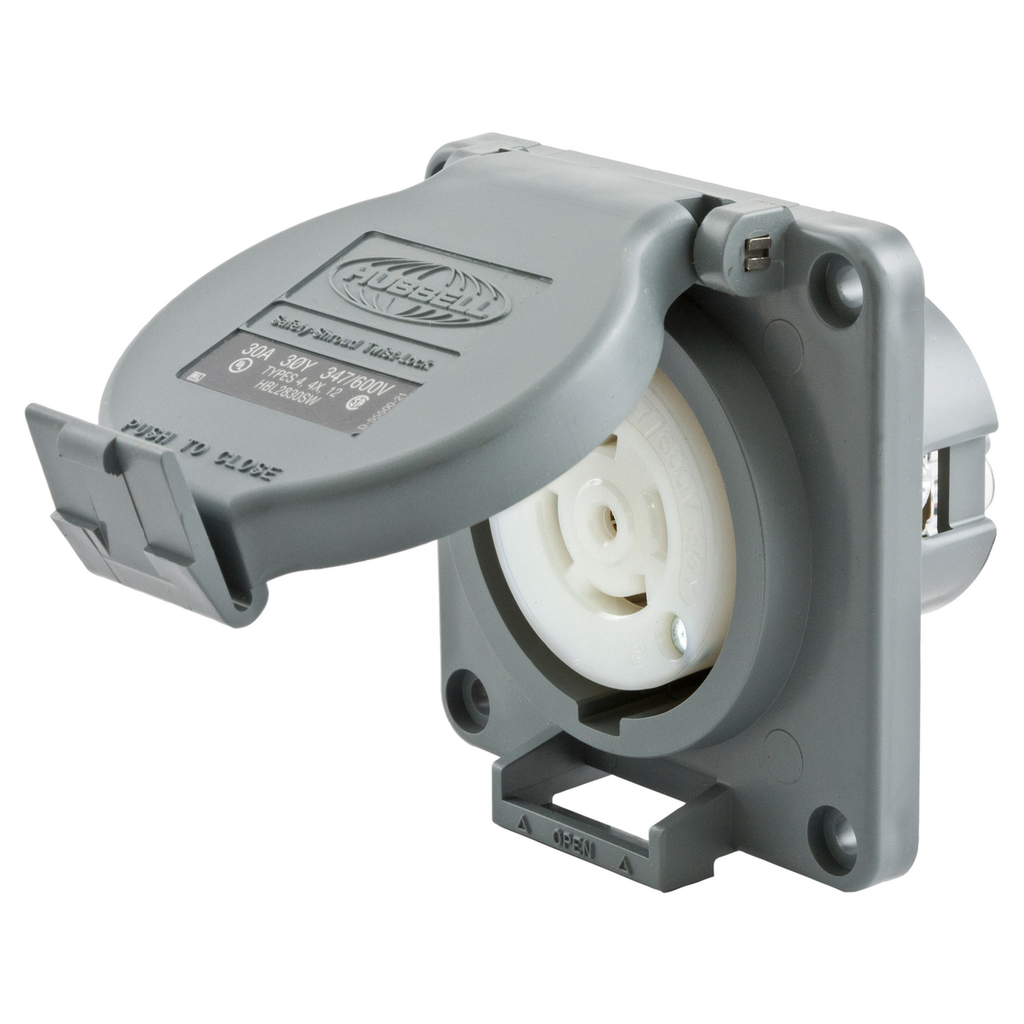

Product image for HWDK HBL2830SW LKG WT S/SHRD RCPT,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK HBL2830SW LKG WT S/SHRD RCPT,

Manufacturer: Hubbell / Kellems | Catalog # HBL2830SW | North Coast Part # 749671
$341.15/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, NEMA L23-30R, Screw Terminal, PBT housing and flange, Gray

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
12-8 AWG
Contact Material
Brass
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Flamability Class
V2 Or Better Per UL94/CSA 22.2 No.0.17
Material
Thermoplastic
Mounting Type
Screw
NEMA
L23-30R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
TC Connection
Screw Terminal
Type
Watertight
Voltage
347/600 Volt
Wattage
18000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585128917
Color
Gray/White
Environmental Conditions
Watertight
GTiN
00783585128917
Product UPC
78358512891

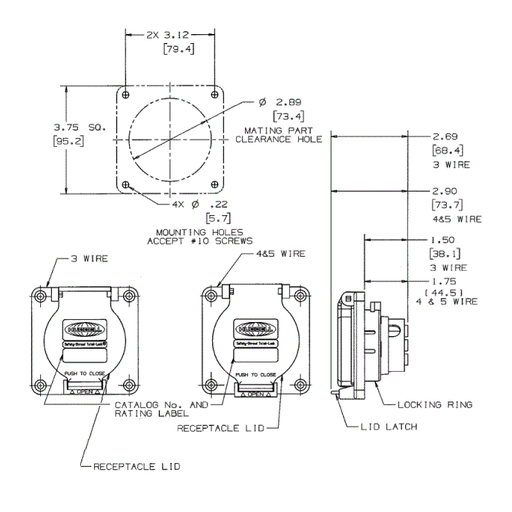

Dimensions

Height
2.9 Inch
Length
3-3/4 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL type 4X environmental seal while in use and when closed
  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Shrouded Watertight Construction
