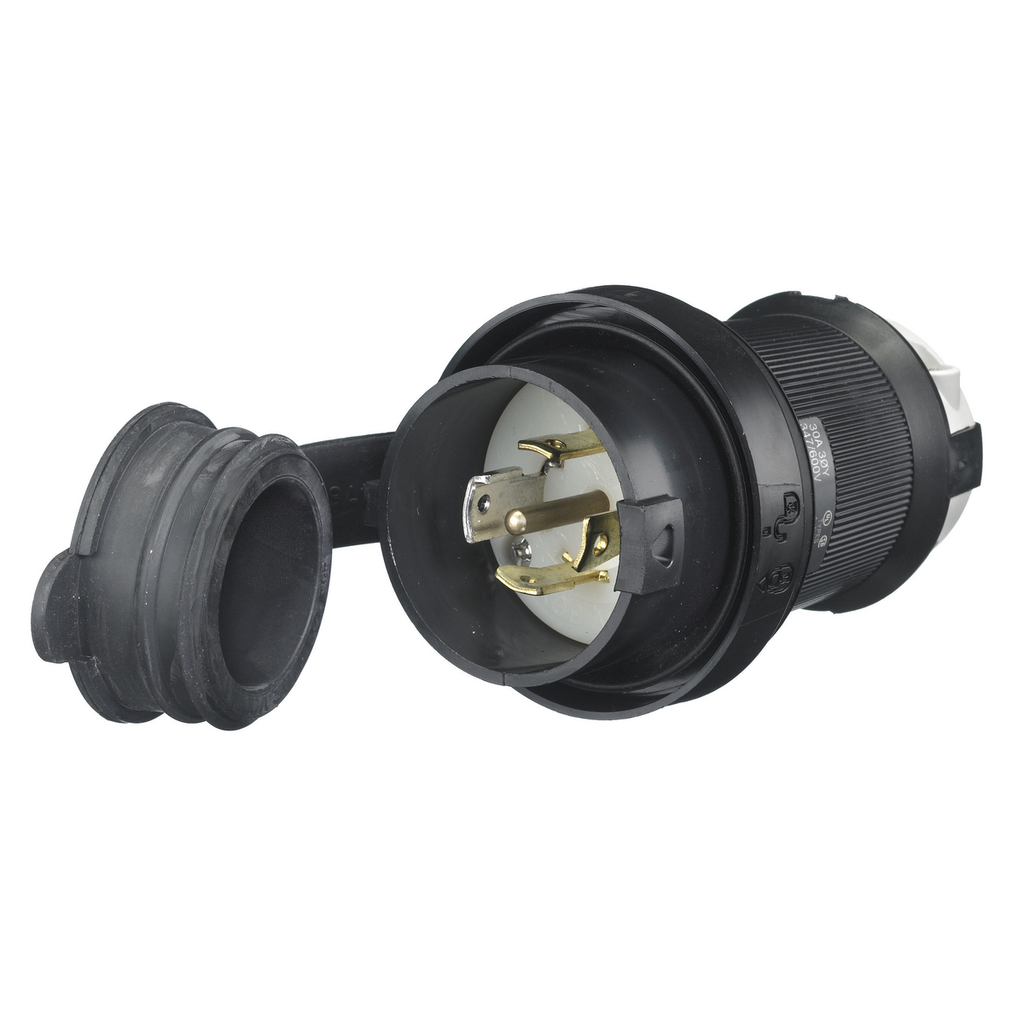

Product image for HCI HBL2831SW LKG WT S/SHRD PLUG, 3
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

HCI HBL2831SW LKG WT S/SHRD PLUG, 3

Manufacturer: Hubbell / Kellems | Catalog # HBL2831SW | North Coast Part # 749673
$394.87/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, NEMA L23-30P, Screw Terminal, Black PBT housing, White PBT clamps

Technical Information

Amperage
30 Amp
Applications
For Extra Heavy Duty Industrial Application
Conductor Size
16-8 AWG
Contact Material
Nickel Plated Brass
Cord Size
0.35 - 1.15 in
Cord Type
All Listed Portables
Current
30 Amp
Flamability Class
V0 Per UL94 Or CSA 22.2 No.0.17
Grounding
Yes
Material
PBT
Mounting Type
Cord
NEMA
L23-30P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size
2.94 in x 2.94 in x 4.40 in
Temperature Rating
-40 to 75 degrees C
Type
Standard Sized
Voltage
347/600 Volt
Wattage
18000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585128924
Color
Black,White
Environmental Conditions
Watertight
GTiN
00783585128924
Product UPC
78358512892

Dimensions

Height
4.4 Inch
Length
2.94 Inch
Width
2.94 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • Impact resistant shroud protects blades against bending and breaking.
  • Reduces exposure to arcing when connecting or disconnecting under load.
  • Superior cord grip design protects terminations from excess strain.
  • Shrouded Watertight Construction
