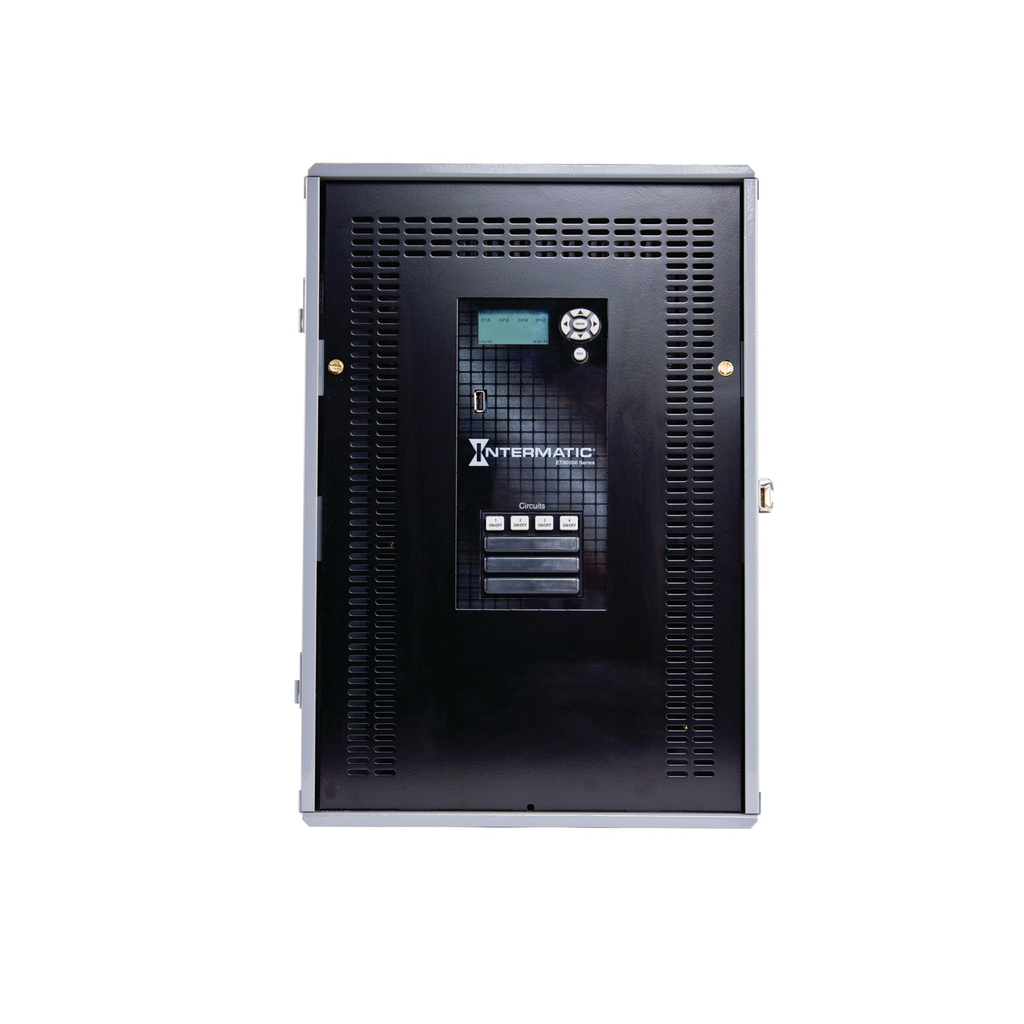

Product image for Intermatic ET90415CR NEMA 3R Steel Case 365 Day 120 to 277 VAC 60 Hz 30 Amp SPDT Astronomic Time Switch with Ethernet
Image thumbnail 0
Image thumbnail 1

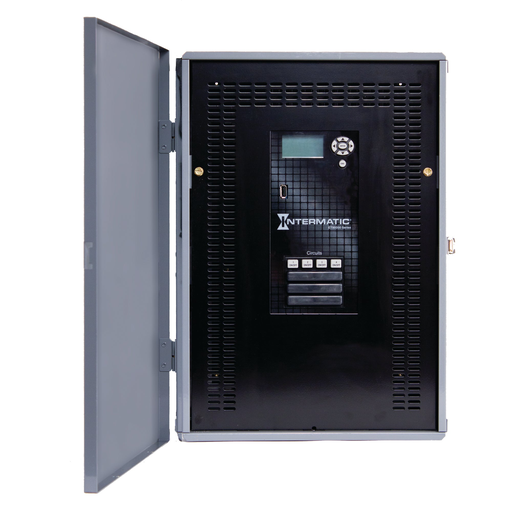

Image thumbnail 2
Email

Intermatic ET90415CR NEMA 3R Steel Case 365 Day 120 to 277 VAC 60 Hz 30 Amp SPDT Astronomic Time Switch with Ethernet

Manufacturer: Intermatic | Catalog # ET90415CR | North Coast Part # 751893
$2,760.37/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates.

Technical Information

Action
SPDT
Amperage
20 Amp
Applications
General Purpose, Lighting, HVACR, Outdoor
Connection Type
Wire Lead
Contact Configuration
(4) SPDT - 1 NO/1 NC
Contact Rating
30 A at 12 - 240 VAC (General Purpose and Resistive NO Only), 20 A at 12 - 240 VAC (General Purpose and Resistive NO), 10 A at 12 - 240 VAC (General Purpose and Resistive NC), 20 A at 28 VDC (General Purpose and Resistive NO), 10 A at 28 VDC (General Purpose and Resistive NC), 20 A at 120 - 277 VAC (Ballast NO), 3 A at 120 - 277 VAC (Ballast NC), 5 A at 12 - 240 VAC (Tungsten NO Only), 470 VA at 12 - 240 VAC (NO), 275 VA at 12 - 240 VAC (NC)
Enclosure
Type 3R Steel
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Frequency
50/60 Hz
Input Voltage
208-277 V
Material
Steel
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
4
Number of Poles
1 Pole
Operating Cycles
ON-OFF-ON
Operating Temperature
-40 to 120 degrees F, -40 to 50 degrees C
Power Consumption
50 W
Size
17.9 HEIGHT X 12.7 WIDTH X 5.4 DEPTH IN, 454 HEIGHT X 322 WIDTH X 138 DEPTH CM
Standard
CCSAus Certified,CULus Listed,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
2xDPDT,4xSPDT
TC Connection
Wire Lead
Temperature Rating
-40 to 120 degrees F, -40 to 50 degrees C
Type
Astronomic, Electronic
Voltage
277 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275124912
Color
Gray
GTiN
00078275124912
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827512491
Used With
Lighting

Dimensions

Depth
5.4 Inch
Height
17.9 Inch
Warranty Length
3 yr
Width
12.7 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately)
  • Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
  • 30 A rated contacts
  • 100-hour supercapacitor eliminates the need for batteries
  • USB connection for uploading, downloading and transferring programs
  • Easy-to-follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware can be upgraded in-field via USB or Ethernet
  • Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
