Hubbell HBL2341 20A 480V AC Twist-Lock INSULGRIP Black Nylon Plug, Straight

Manufacturer: Hubbell / Kellems | Catalog # HBL2341 | North Coast Part # 7534
$53.76/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Pick Up

at Auburn Closes 4:00pm PT
5 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual

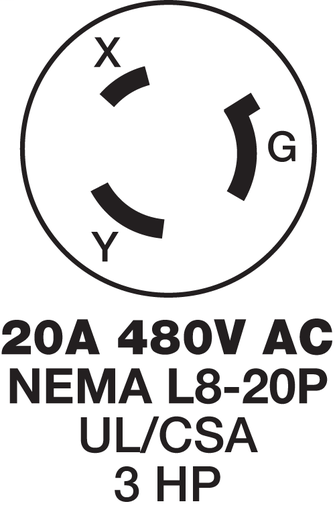

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 480V AC, 2-Pole 3-Wire Grounding, NEMA L8-20P, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial Application
Conductor Size
12-10 AWG
Cord Type
Portable
Current
20 Amp
Grounding
Yes
Horsepower
3 hp
Material
Composite
Mounting Type
Surface
NEMA
L8-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Type
Insulgrip, Standard Sized
Voltage
480 Volt
Wattage
9600 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585037950
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585037950
Product UPC
78358503795
Weight
0.3 lb

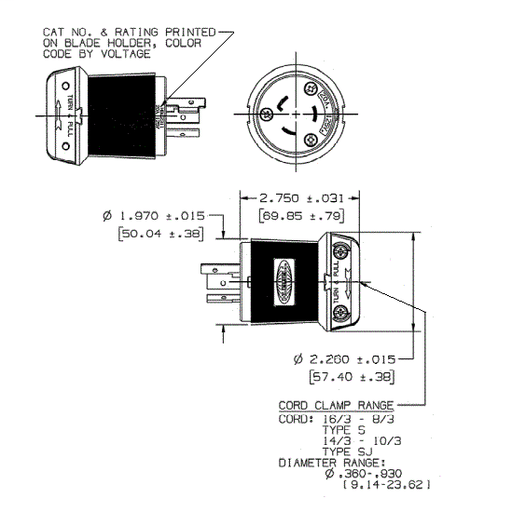

Dimensions

Height
2-3/4 Inch
Length
2.26 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
